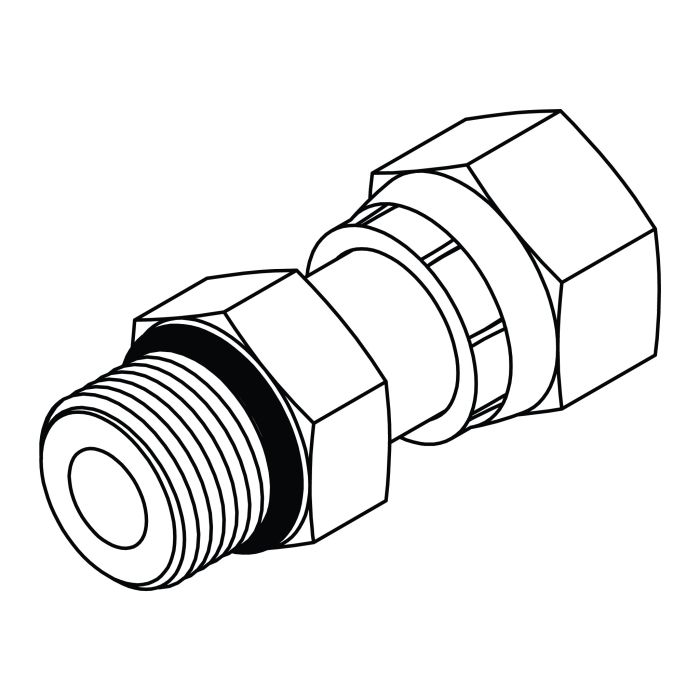

FS6540-08-08 Male O-Ring to Female ORFS Swivel Stud Straight

FS6540-08-08 Male O-Ring to Female ORFS Swivel Stud Straight | Steel Hydraulic Adapter

The FS6540-08-08 Male O-Ring to Female ORFS Swivel Stud Straight is a hydraulic straight adapter designed to connect a male O-ring (ORB-style) port to a female ORFS swivel connection. It provides a reliable transition between two widely used hydraulic sealing systems while ensuring strong, leak-free performance in high-pressure applications.

Manufactured from high-strength steel, this fitting is built for durability, vibration resistance, and consistent sealing performance in demanding hydraulic systems.

Specifications

• Part Number: FS6540-08-08
• Material: Steel
• Shape: Straight
• Thread 1 Type: Male O-Ring (ORB)
• Thread 1 Nominal Size: 08
• Thread 1 Size: 3/4-16 UNF
• Thread 2 Type: Female O-Ring Face Seal (ORFS) Swivel
• Thread 2 Nominal Size: 08
• Thread 2 Size: 13/16-16 UNF
