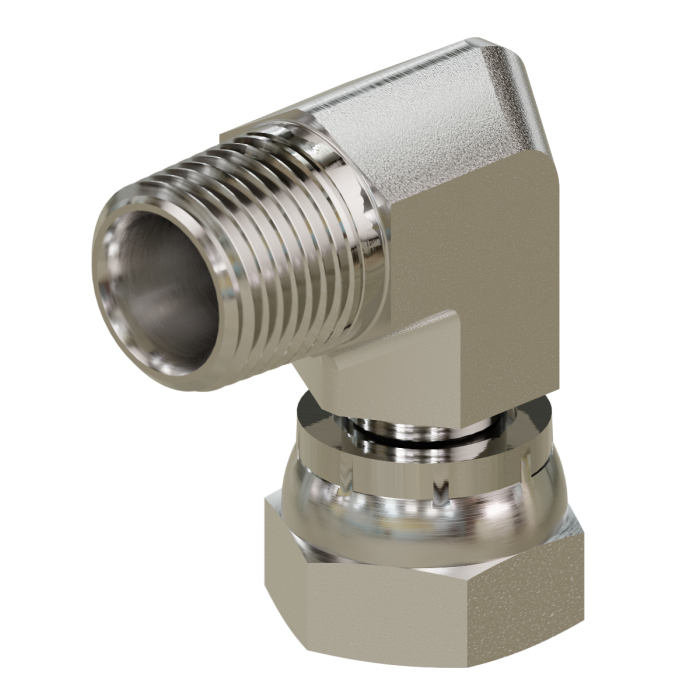

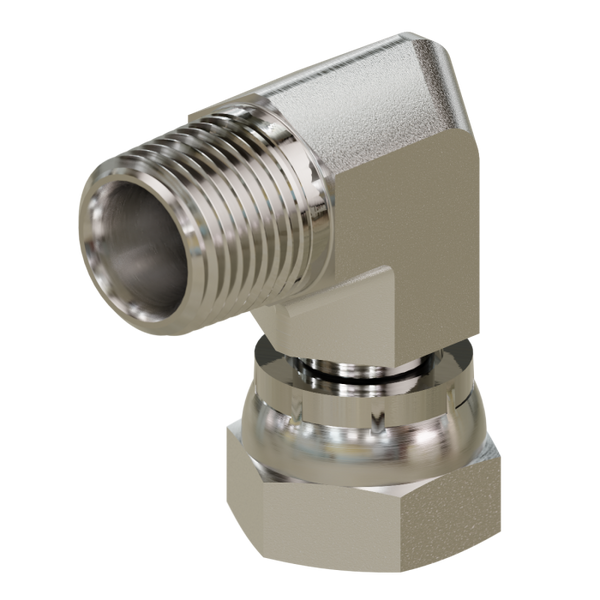

1501 NPTF Pipe Male to NPSM Pipe Swivel Female 90° Elbow
Route hydraulic lines through a 90° turn with the 1501 Male NPTF × Female NPSM Swivel Elbow. Carbon steel construction, zinc-plated finish, and swivel alignment provide a practical connection for demanding hydraulic systems.
Filter Products
Material
Size
The 1501 Male NPTF × Female NPSM Swivel 90° Elbow is designed for hydraulic systems that require a 90-degree change in flow direction combined with flexible swivel installation. The Male NPTF connection provides a tapered pipe-thread interface, while the Female NPSM swivel allows easier positioning during assembly.
Built from carbon steel with a zinc-plated finish, the 1501 provides a strong and practical connection for hydraulic hose assemblies, fluid-power equipment, and demanding hydraulic systems.
Male NPTF × Female NPSM Swivel Connection
The 1501 combines two distinct pipe-thread configurations:
- Male NPTF pipe thread
- Female NPSM swivel
- 90° elbow configuration
This combination is useful when a hydraulic line needs both a directional change and swivel flexibility at the connection point.
The Male NPTF side uses a tapered pipe thread, while the Female NPSM side uses a straight mechanical thread with swivel functionality. Always verify both thread specifications before installation.
90° Elbow for Cleaner Hydraulic Routing
The 90° configuration redirects the hydraulic line without requiring an additional elbow fitting.
This can help create a cleaner connection where the hose or pipe needs to turn around equipment, ports, or other components. A dedicated 90° elbow can also help keep the finished hydraulic assembly more organized and compact.
The 1501 is particularly useful when straight-line routing would create unnecessary bends or installation challenges.
Female NPSM Swivel for Easier Installation
The Female NPSM swivel provides additional flexibility during assembly.
Instead of requiring the connected component or hose to remain fixed in one orientation, the swivel connection allows easier positioning while tightening the fitting.
This can be especially useful in hydraulic assemblies where access is limited or where the final hose orientation needs to be adjusted after the fitting is installed.
Carbon Steel Construction
The 1501 is made from high-strength carbon steel and features a zinc-plated surface designed to provide resistance against corrosion and demanding working conditions.
The steel construction provides a strong body for hydraulic connections exposed to pressure, vibration, and regular equipment operation.
The zinc-plated finish adds another layer of protection for the fitting surface in suitable operating environments.
NPTF Male Connection
The male side of the 1501 uses NPTF (National Pipe Taper Fuel) threads.
NPTF is a tapered pipe-thread configuration used for compatible hydraulic and fluid-power connections. The tapered thread design provides the intended sealing interface when correctly matched with the appropriate female connection.
Before installation, confirm the required NPTF size and ensure the mating component is designed for the same thread specification.
NPSM Female Swivel Connection
The opposite side uses a Female NPSM (National Pipe Straight Mechanical) swivel connection.
NPSM uses a straight mechanical thread rather than a tapered pipe thread. The swivel design allows the female connection to rotate during assembly, helping with alignment and positioning.
This makes the 1501 useful where installation flexibility is important and the connected hose or component needs to be positioned without excessive twisting.
90° Directional Change
A 90° elbow is useful when the hydraulic connection needs to change direction immediately after the port.
The 1501 creates this directional change within the fitting itself, reducing the need to build the same routing using multiple separate components.
This can help simplify hydraulic assemblies while keeping the connection configuration easy to identify during installation and service.
Installation Considerations
Proper installation is important for achieving reliable performance from the 1501.
Before installation:
- Confirm the Male NPTF thread size.
- Confirm the Female NPSM swivel size.
- Verify compatibility with the mating components.
- Check available clearance around the 90° elbow.
- Align the swivel connection before final tightening.
- Avoid excessive torque that could damage the fitting or connected components.
Correct thread identification is essential. NPTF and NPSM are different thread configurations and should not be treated as interchangeable simply because their nominal sizes appear similar.
Why Choose the 1501?
The 1501 provides several useful features in one hydraulic fitting:
- Male NPTF × Female NPSM Swivel connection
- 90° elbow configuration
- Carbon steel construction
- Zinc-plated finish
- Swivel installation flexibility
- Compact directional routing
- Suitable for demanding hydraulic systems
Combining the directional change and swivel function in one fitting can simplify installation where both routing and alignment are important.
Choosing the Correct 1501
Before ordering the 1501, verify the connection requirements on both sides of the fitting.
Check:
- Male NPTF thread size
- Female NPSM swivel size
- Required 90° orientation
- Mating component compatibility
- Available installation clearance
- Hydraulic system operating requirements
Part numbers are available in different connection combinations, so selecting the correct size is important for achieving a proper fit within the hydraulic assembly. The collection includes configurations from smaller connections through larger pipe sizes.
1501 for Hydraulic Line Routing
The 1501 is designed for hydraulic assemblies where the line needs to turn 90 degrees while maintaining flexibility at the swivel connection.
Its combination of Male NPTF threading, Female NPSM swivel functionality, carbon steel construction, and zinc-plated finish provides a practical solution for hydraulic equipment where connection direction and installation positioning both matter.
Gear House Hydraulics 1501
Gear House Hydraulics offers the 1501 Male NPTF × Female NPSM Swivel 90° Elbow in a broad selection of connection combinations.
The collection lists steel construction, zinc-plated finish, 90° elbow configuration, and swivel installation design for high-pressure hydraulic use.
Order 1501 Male NPTF × Female NPSM Swivel Elbow
When your hydraulic system requires a 90° connection between Male NPTF and Female NPSM swivel threads, the 1501 provides the directional routing and installation flexibility in one fitting.
Select the correct connection sizes, verify thread compatibility, and make sure the fitting is suitable for the operating conditions of the complete hydraulic assembly.
FAQs
What is a 1501 hydraulic fitting?
The 1501 is a 90° hydraulic elbow that connects a Male NPTF pipe thread to a Female NPSM swivel connection.
What type of connections does the 1501 use?
It uses Male NPTF × Female NPSM Swivel connections.
Is the 1501 a 90° elbow?
Yes. The fitting provides a 90-degree change in flow direction for hydraulic line routing.
Does the Female NPSM side swivel?
Yes. The Female NPSM connection is designed as a swivel, allowing easier positioning during installation.
What material is the 1501 made from?
The page lists high-strength carbon steel construction with a zinc-plated finish.
What does NPTF mean?
NPTF means National Pipe Taper Fuel, a tapered pipe-thread configuration used with compatible hydraulic and fluid-power connections.
What does NPSM mean?
NPSM means National Pipe Straight Mechanical, referring to a straight mechanical pipe-thread connection.
Why use a 90° hydraulic elbow?
A 90° elbow changes the direction of the hydraulic line while helping create a cleaner and more compact connection where straight routing is not practical.
How do I choose the correct 1501 size?
Confirm the required Male NPTF size and Female NPSM swivel size, then verify the mating components, available clearance, and hydraulic system requirements before ordering.
