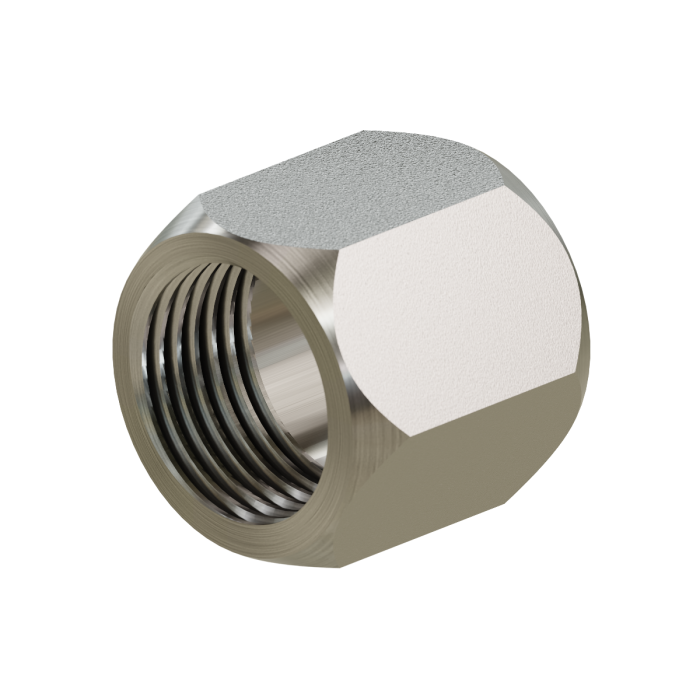

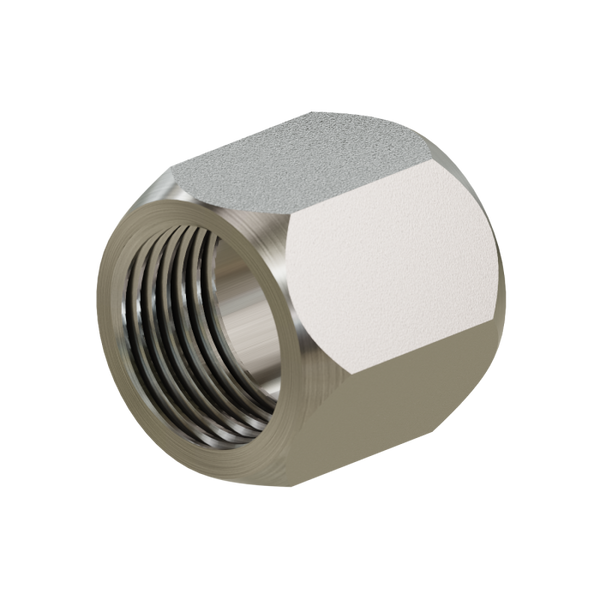

0318SS – JIC Flare 37° Tube Nut - Stainless Steel
Overview
The 0318SS JIC Flare 37° Tube Nut series is engineered to provide secure and repeatable tube connections in high-pressure hydraulic systems. These tube nuts are designed to be used with 0319SS stainless steel sleeves, forming a reliable JIC 37° flare joint that delivers excellent sealing integrity under demanding operating conditions.
Specifications
-
Material: 316 Stainless Steel
-
Shape: Tube Nut
-
Manufacturing: Forged
-
Connection Type: Female JIC 37°
-
Required Sleeve: 0319SS Series
-
Compliance: MS 51531, SAE 070110, ASME B1.20.1, SAE AS71051
Features
-
Precision JIC 37° female threads
-
High corrosion and temperature resistance
-
Forged construction for strength and longevity
-
Designed for repeatable, leak-free assembly
Applications
- Hydraulic tube assemblies
- Industrial fluid power systems
- Marine and offshore equipment
- Chemical processing lines
Manufactured from forged 316 stainless steel, these nuts offer superior resistance to corrosion, high temperatures, and mechanical stress. Their precision-machined JIC female threads ensure accurate engagement with mating fittings, minimizing galling and ensuring consistent torque performance during installation.
The 0318SS series complies with recognized industry standards, making it suitable for hydraulic, marine, chemical, and industrial fluid power systems where durability and leak prevention are critical.
