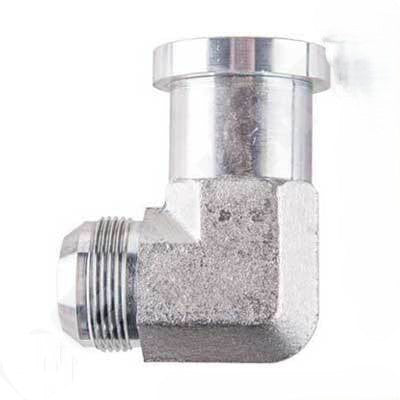

1804 FG JIC to Flange Elbow 90° | Forged Steel | Code 62 | 6000 PSI
Product Description
The 1804 FG series Forged Body JIC to Flange Elbow 90° Code 62 collection provides precision-engineered hydraulic elbows for high-pressure systems. Each fitting features a male JIC connection on one end and a Code 62 flange on the other, allowing secure attachment to pumps, manifolds, and valve blocks in heavy equipment and industrial machinery. Designed for high-pressure circuits up to 6,000 PSI, these elbows offer reliable, leak-free performance even under demanding operating conditions.
Pressure Ratings
- Code 62 compliance
- Maximum working pressure: 6,000 PSI
- Suitable for high-pressure hydraulic circuits
- Leak-resistant mechanical design
Design and Material Overview
- Material: Forged Steel
- Shape: 90-degree elbow
- Thread 1 Type: Male JIC (sizes 16 nominal and others)
- Thread 2 Type: Code 62 Flange (sizes 12 nominal and others)
- Forged construction ensures dimensional precision
- Anti-corrosion coating for extended service life
Industries and Use Cases
- Construction and earth-moving machinery
- Mining and heavy equipment hydraulics
- Agricultural machinery
- Mobile hydraulic repair workshops
- Industrial hydraulic power units
- OEM maintenance and replacement
Standards and Compliance
- SAE Code 62 high-pressure standard
- Fully interchangeable with standard JIC and Code 62 flange ports
- Precision-machined to industrial hydraulic tolerances
- Suitable for high-pressure heavy equipment applications
Applications
- Hydraulic pump outlet connections
- Manifold and valve block hose attachment
- Mobile machinery hydraulic lines
- High-flow oil circuits
- Replacement of damaged or worn elbows
Manufactured from forged carbon steel, the elbows combine superior mechanical strength with long-term durability. The industrial anti-corrosion coating protects against rust, oil, and environmental exposure, making the fittings suitable for outdoor mobile machinery, construction equipment, and high-flow industrial systems.
