1404 NPT Pipe Male to NPSM Pipe Female Swivel Straight | Hydraulic Pipe Fitting
Connect Male NPT to Female NPSM swivel ports with the 1404 straight hydraulic adapter. Steel construction, flexible swivel alignment, multiple sizes, and up to 5,000 PSI support demanding fluid-power applications.
Filter Products
Material
Size

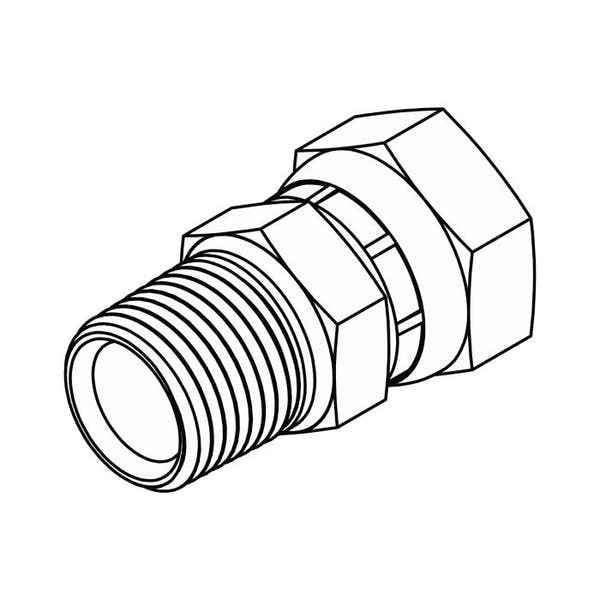

The 1404 Male NPT × Female NPSM Swivel Straight is designed to connect tapered male NPT pipe threads with female NPSM swivel connections in hydraulic and fluid-power systems. Its straight configuration provides a direct connection path, while the swivel female end allows easier alignment during installation.
Built in steel and offered in a wide range of sizes, the 1404 is a practical choice for hydraulic, lubrication, instrumentation, and industrial fluid-transfer applications.
Male NPT × Female NPSM Swivel Connection
The 1404 combines two specific pipe connection types in one fitting:
- Male NPT connection
- Female NPSM swivel connection
- Straight configuration
This makes the fitting useful when equipment or hydraulic components use different pipe-thread configurations and require a direct connection between them.
Correct thread identification is important before installation. NPT and NPSM are different connection types and should not be treated as interchangeable simply because their nominal sizes may look similar.
Female NPSM Swivel for Easier Alignment
The swivel female end is one of the key advantages of the 1404.
Instead of forcing the connected component into a fixed orientation, the swivel design provides greater flexibility during assembly. This can help reduce alignment problems and unnecessary installation stress.
The swivel connection is particularly useful when working with hydraulic assemblies where access is limited or where the connected hose, tube, or component needs to be positioned precisely.
Straight Design for Direct Hydraulic Routing
The 1404 uses a straight fitting configuration, keeping both connection points aligned.
This makes it suitable for applications where the hydraulic line does not require a directional change. A straight adapter can also help keep the finished assembly compact by avoiding unnecessary elbows or additional fittings.
For pipe-to-pipe hydraulic connections, the 1404 provides a simple and practical configuration.
Steel Construction
Gear House Hydraulics lists the 1404 in steel, making it suitable for demanding hydraulic and industrial applications.
Steel construction provides a strong fitting body for applications exposed to hydraulic pressure, equipment vibration, and regular service conditions.
The fitting is also available across a broad range of connection sizes, making it easier to match the adapter to different hydraulic systems.
Up to 5,000 PSI Working Pressure
The 1404 collection lists a working pressure of up to 5,000 PSI, with actual working pressure depending on tube size, fitting size, and application conditions.
For high-pressure systems, the pressure rating of the complete hydraulic assembly should always be considered. The hose, tubing, fittings, mating ports, and other components should be suitable for the intended operating conditions.
Reduce Installation Stress
Getting hydraulic connections aligned correctly can be challenging when components are already installed in machinery.
The 1404 swivel design provides additional movement at the female connection during assembly. This can help prevent unnecessary force from being transferred to connected components and make threading easier in restricted spaces.
A properly aligned fitting also helps create a cleaner final hydraulic assembly.
Why Choose the 1404?
The 1404 is a practical choice when your application requires:
- Male NPT × Female NPSM Swivel connection
- Straight hydraulic routing
- Steel construction
- Female swivel flexibility
- Multiple size combinations
- Up to 5,000 PSI working pressure
- Hydraulic and industrial fluid-transfer capability
- Easier installation and alignment
Its combination of NPT and NPSM connections makes it useful for hydraulic systems where pipe-thread compatibility and installation flexibility are both important.
How to Select the Correct 1404
Before ordering, confirm both connection types and nominal sizes.
Check:
- Male NPT size required by the equipment.
- Female NPSM size required on the swivel side.
- Whether the application requires an equal-size or reducing adapter.
- Operating pressure of the complete hydraulic system.
- Available installation space.
- Compatibility of the mating components.
For example, the 1404-04-04 provides a 1/4-18 Male NPT connection and a 1/4-18 Female Pipe Swivel connection.
Do not select a fitting based only on nominal size. Confirm the actual thread type before installation.
1404 for Industrial Hydraulic Equipment
Industrial hydraulic equipment often combines components from different manufacturers, which can result in different connection requirements within the same system.
The 1404 provides a dedicated Male NPT to Female NPSM swivel transition, helping installers connect compatible components without unnecessarily adding multiple adapters.
Its straight configuration is useful where direct routing is preferred, while the swivel end provides additional flexibility during assembly.
Gear House Hydraulics 1404
Gear House Hydraulics offers the 1404 Male NPT × Female NPSM Swivel Straight in a broad range of steel configurations.
The collection includes sizes from 1/8" through 2", with equal and reducing combinations. The series is listed for high-pressure hydraulic and fluid-transfer applications, with working pressure up to 5,000 PSI depending on fitting and application conditions.
Order 1404 Male NPT × Female NPSM Swivel
When your hydraulic assembly needs a straight connection between Male NPT and Female NPSM swivel threads, the 1404 provides a practical solution.
Choose the correct size combination, verify the exact thread specifications, and make sure the complete hydraulic assembly is suitable for the intended pressure and operating conditions.
FAQs
What is a 1404 hydraulic fitting?
The 1404 is a straight hydraulic adapter that connects a Male NPT pipe thread to a Female NPSM swivel pipe thread.
What type of connection does the 1404 use?
It uses Male NPT × Female NPSM Swivel connections in a straight configuration.
What material is the 1404 made from?
The Gear House Hydraulics collection lists the 1404 in steel.
Is the Female NPSM side a swivel connection?
Yes. The female side is specifically designed as a Female Pipe Swivel, allowing easier alignment during installation.
What pressure can the 1404 handle?
The collection lists working pressure up to 5,000 PSI, depending on tube size, fitting size, and application conditions.
What sizes are available?
The 1404 collection includes multiple equal and reducing configurations from 1/8" through 2".
What is SAE 140130 on the 1404?
The 1404-04-04 product listing identifies SAE 140130 as its compliance specification.
Where can the 1404 be used?
It is listed for hydraulic systems, lubrication systems, instrumentation lines, industrial fluid transfer, and other applications requiring straight pipe connections with swivel flexibility.
How do I choose the correct 1404 size?
Confirm the required Male NPT size and Female NPSM swivel size, then select the matching part number. Also verify thread type, pressure requirements, and mating-component compatibility before installation.
