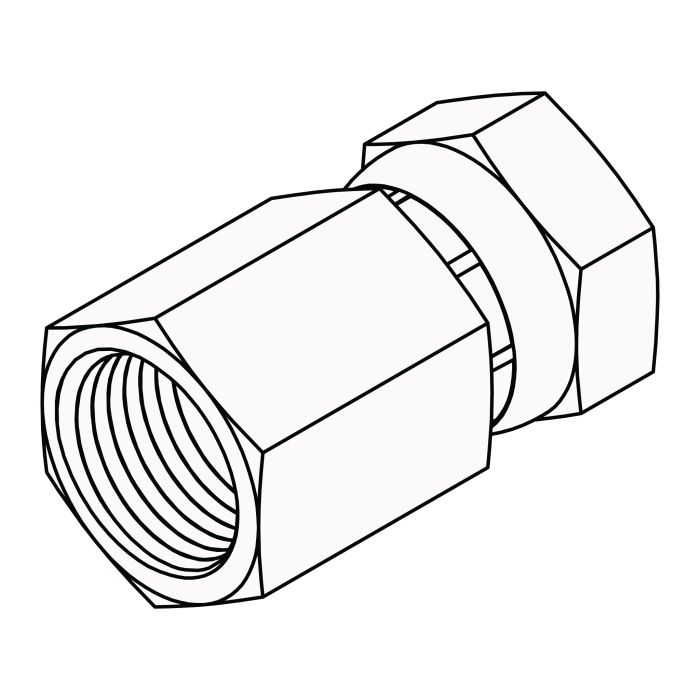

1405 NPTF Female to NPSM Female Swivel Straight Adapter
Connect Female NPTF to Female NPSM swivel ports with the 1405 straight hydraulic adapter. Steel construction, swivel alignment, and up to 5,000 PSI support reliable hydraulic connections where fit, alignment, and pressure matter.
Filter Products
Material
Size
The 1405 NPTF Female × NPSM Female Swivel Straight Adapter connects female NPTF pipe threads to a female NPSM swivel connection in a straight configuration. Its swivel design helps with alignment and tightening during installation, making it a practical choice for hydraulic and fluid-power assemblies.
Built in steel and rated for working pressures up to 5,000 PSI, the 1405 provides a dependable connection solution where different pipe-thread configurations need to be joined in a compact straight adapter.
Female NPTF × Female NPSM Swivel Connection
The 1405 combines two specific female pipe-thread connections:
- Female NPTF pipe thread
- Female NPSM pipe swivel
- Straight adapter configuration
This combination allows compatible hydraulic components with different pipe-thread requirements to be connected through one fitting.
The NPTF side uses a tapered pipe thread, while the NPSM side uses a straight mechanical swivel connection. Confirming the exact thread type before installation is important because NPTF and NPSM are different connection configurations.
Female NPSM Swivel for Easier Alignment
The Female NPSM swivel is a key feature of the 1405 adapter.
The swivel end can rotate during assembly, giving the installer additional flexibility when aligning the connected component. This can make installation easier where fixed pipe connections are difficult to position correctly.
The swivel design can also help reduce unnecessary twisting and installation stress on connected components.
Straight Adapter Configuration
The 1405 uses a straight-through configuration, keeping both connection points aligned.
This makes it useful where a direct connection is preferred without changing the direction of the hydraulic line. The straight body also provides a simple, compact connection between compatible pipe-thread components.
For hydraulic assemblies where alignment and connection access are important, the swivel feature adds flexibility without changing the overall straight configuration.
Steel Construction
The 1405 is listed with steel construction, providing a strong fitting body for hydraulic and industrial fluid-power systems.
Steel is well suited to hydraulic assemblies that experience pressure, vibration, and regular operating loads. Proper sizing and installation remain important to ensure the fitting performs correctly within the complete hydraulic system.
Up to 5,000 PSI Working Pressure
The 1405 collection lists a working pressure of up to 5,000 PSI. Actual pressure capability can vary according to fitting size, line conditions, and the operating environment.
For high-pressure hydraulic systems, always consider the rating of the complete assembly, including hoses, tubing, fittings, ports, and other connected components.
NPTF Female Pipe Connection
The first side of the 1405 uses a Female NPTF pipe thread.
NPTF stands for National Pipe Taper Fuel. It uses a tapered thread configuration designed to provide a dryseal connection when properly matched with compatible male fittings.
The NPTF connection should be matched with the correct male thread size and specification. Avoid selecting the fitting based only on nominal pipe size without confirming the actual thread type.
NPSM Female Swivel Connection
The opposite side uses a Female NPSM swivel connection.
NPSM stands for National Pipe Straight Mechanical. Unlike the tapered NPTF side, NPSM uses a straight mechanical thread configuration.
The swivel feature allows the female connection to rotate during assembly, helping achieve proper alignment while reducing the need to reposition connected components.
Installation Considerations
Proper installation is important for achieving reliable performance from the 1405.
Before installation:
- Confirm the Female NPTF thread size.
- Confirm the Female NPSM swivel connection size.
- Verify that the mating male fittings use the correct compatible thread types.
- Check the pressure requirements of the complete hydraulic assembly.
- Use appropriate tools and avoid excessive torque.
- Use a backup wrench on the swivel end when required to prevent unnecessary torque transfer.
The Gear House Hydraulics page also notes that thread sealant or tape may be required on NPTF connections depending on sealing requirements and mating components.
Why Choose the 1405?
The 1405 is a practical choice when your hydraulic assembly requires:
- Female NPTF × Female NPSM Swivel connections
- Straight hydraulic routing
- Steel construction
- Swivel alignment during installation
- A compact pipe-thread adapter
- Working pressure up to 5,000 PSI
- Connection between different pipe-thread configurations
Its combination of a female NPTF port and female NPSM swivel provides flexibility for hydraulic systems where connection compatibility and installation alignment both matter.
Selecting the Correct 1405
Before ordering the 1405, verify the connection requirements on both sides of the hydraulic assembly.
Pay particular attention to:
- Female NPTF thread type
- Female NPSM swivel thread type
- Nominal connection size
- Required pressure rating
- Compatibility with the mating male fittings
- Available installation space
Correct thread identification helps prevent mismatched connections and unnecessary installation problems.
1405 for Hydraulic Assemblies
Hydraulic systems can include components with different pipe-thread configurations, especially when equipment combines components from different manufacturers or hydraulic standards.
The 1405 provides a dedicated Female NPTF to Female NPSM swivel connection in a straight configuration. The swivel end provides additional alignment flexibility, while the steel body is suited to demanding hydraulic and fluid-power environments.
Gear House Hydraulics 1405
Gear House Hydraulics offers the 1405 NPTF Female × NPSM Female Swivel Straight Adapter in multiple configurations. The collection includes steel construction and connection combinations ranging from smaller pipe sizes through larger hydraulic fittings.
The series is listed with working pressure up to 5,000 PSI, depending on fitting size and operating conditions.
Order 1405 NPTF Female × NPSM Female Swivel
When your hydraulic system needs a straight adapter connecting Female NPTF and Female NPSM swivel threads, the 1405 provides a practical connection solution.
Select the correct configuration, verify the mating thread specifications, and make sure the complete hydraulic assembly is properly rated for the intended operating pressure.
FAQs
What is a 1405 hydraulic fitting?
The 1405 is a straight hydraulic adapter designed to connect a Female NPTF pipe thread to a Female NPSM swivel connection.
What type of connections does the 1405 use?
It uses Female NPTF × Female NPSM Swivel connections in a straight configuration.
Is the NPSM side a swivel?
Yes. The NPSM side is a Female Pipe Swivel, allowing easier alignment and tightening during installation.
What material is the 1405 made from?
The Gear House Hydraulics collection lists the 1405 in steel.
What pressure can the 1405 handle?
The collection lists working pressure up to 5,000 PSI, with actual capability depending on fitting size, line conditions, and operating environment.
What does NPTF mean?
NPTF means National Pipe Taper Fuel, referring to a tapered pipe-thread connection designed for dryseal applications when properly matched.
What does NPSM mean?
NPSM means National Pipe Straight Mechanical, referring to a straight mechanical pipe-thread connection.
Is the 1405 a straight adapter?
Yes. The 1405 has a straight-through configuration, with the Female NPSM connection incorporating the swivel feature.
How do I select the correct 1405?
Confirm the required Female NPTF and Female NPSM connection sizes, verify the mating male thread specifications, and check that the complete hydraulic assembly meets the required pressure conditions.
