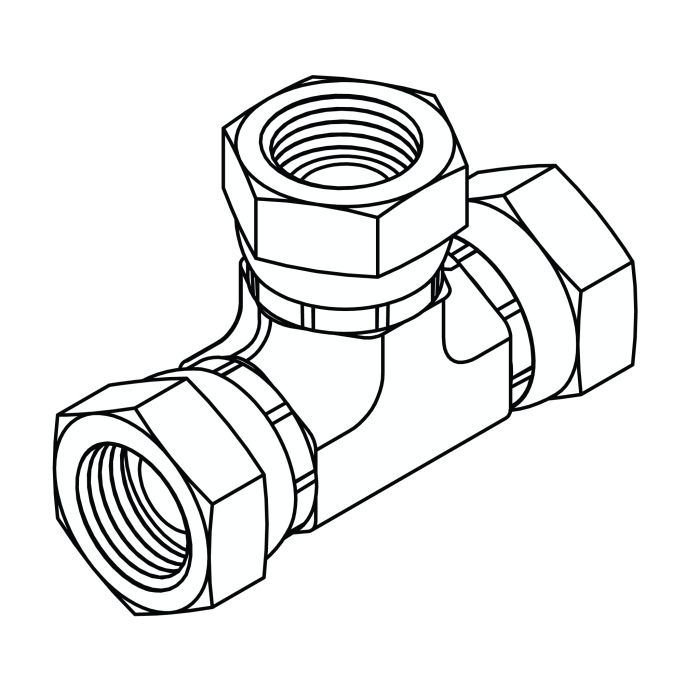

1603 NPSM Female Swivel Union Tee
Connect three hydraulic lines with the 1603 NPSM Female Swivel Union Tee. Steel construction, three swivel connections, and up to 5,000 PSI support flexible alignment and reliable hydraulic line routing.
Filter Products
Material
Size
The 1603 NPSM Female Swivel Union Tee is designed to connect three hydraulic lines through female NPSM pipe swivel connections. Its union-tee configuration provides a compact three-way connection while the swivel ends make alignment easier during installation.
Built in steel and listed with working pressures up to 5,000 PSI, the 1603 is a practical fitting for demanding hydraulic and fluid-power assemblies. Actual working pressure varies according to tube and fitting size.
NPSM Female Swivel Connections
The 1603 features NPSM Female Pipe Swivel connections across its three ports.
NPSM stands for National Pipe Straight Mechanical. The straight mechanical thread configuration works with compatible male pipe connections, while the swivel design allows additional movement during installation.
This combination helps installers position connected components more easily without having to rotate the entire hydraulic assembly.
Three-Way Union Tee Configuration
The union-tee design provides three connection points within one fitting.
Instead of combining several separate adapters to create a branch connection, the 1603 provides a dedicated three-way configuration. This can help keep hydraulic assemblies cleaner and more compact.
The three swivel connections also provide greater flexibility when positioning multiple lines around equipment.
Swivel Design for Easier Alignment
The swivel feature is one of the key benefits of the 1603.
Each female swivel connection can provide additional flexibility during assembly, helping the installer align connected male fittings without forcing the entire line into a fixed position.
This can be especially useful when several hydraulic lines meet in a confined installation area.
Steel Construction
The 1603 is listed with steel construction, providing a strong fitting body for hydraulic systems exposed to pressure, vibration, and regular operating conditions.
Steel construction makes the fitting suitable for demanding fluid-power assemblies where a robust mechanical connection is required.
Up to 5,000 PSI Working Pressure
The 1603 collection lists working pressure of up to 5,000 PSI, with actual working pressure varying according to tube and fitting size.
For systems operating at high pressure, always consider the rating of the complete assembly. Hoses, tubes, fittings, ports, and other connected components should all be suitable for the intended operating conditions.
Compact Three-Line Connection
The 1603 combines three hydraulic connection points into one compact tee.
This configuration can help reduce the number of individual fittings required in a hydraulic assembly while providing a clear connection point for multiple lines.
The swivel functionality adds another layer of installation flexibility, particularly where the connected lines need to be positioned precisely.
Installation Considerations
Correct installation is important for reliable hydraulic performance.
Before installing the 1603:
- Confirm all three NPSM connection sizes.
- Verify that the mating components use compatible male pipe threads.
- Check the pressure requirements of the complete assembly.
- Make sure there is sufficient clearance around the tee.
- Use the swivel function to achieve proper alignment before final tightening.
- Avoid excessive torque that could damage the fitting or connected components.
Correct thread identification should always be confirmed before installation.
Why Choose the 1603?
The 1603 provides several useful features in one hydraulic fitting:
- NPSM Female × NPSM Female × NPSM Female configuration
- Three-way union tee design
- Female swivel connections
- Steel construction
- Easier line alignment
- Compact hydraulic routing
- Up to 5,000 PSI working pressure
- Multiple connection configurations
Combining three swivel connections in one tee makes the 1603 a practical choice when hydraulic line positioning and installation flexibility are important.
Selecting the Correct 1603
Before ordering, verify the connection requirements of all three ports.
Check:
- Required NPSM connection size
- Compatibility with mating male fittings
- Required three-way configuration
- Available installation space
- Hydraulic operating pressure
- Complete assembly compatibility
The collection includes configurations such as 1603-02-02-02, 1603-04-04-04, 1603-06-06-06, 1603-08-08-08, 1603-12-12-12, 1603-16-16-16, and 1603-20-20-20.
1603 for Hydraulic Line Routing
When three hydraulic lines need to meet at one connection point, the 1603 provides a dedicated union-tee configuration with swivel flexibility.
Its three NPSM female swivel connections allow connected components to be positioned more easily during assembly, while the steel body provides a strong mechanical connection for demanding hydraulic systems.
Gear House Hydraulics 1603
Gear House Hydraulics offers the 1603 Pipe Swivel Union Tee with multiple configurations for hydraulic connection requirements.
The collection identifies the fitting for lubrication, instrumentation, and high-pressure hydraulic systems and lists working pressure up to 5,000 PSI depending on tube and fitting size.
Order 1603 NPSM Female Swivel Union Tee
When your hydraulic assembly requires a compact three-way connection with NPSM Female Pipe Swivel connections, the 1603 provides a practical solution.
Select the correct configuration, verify mating thread compatibility, and make sure the complete hydraulic assembly is properly rated for the intended operating conditions.
FAQs
What is a 1603 hydraulic fitting?
The 1603 is a three-way union tee featuring NPSM female pipe swivel connections.
What type of connections does the 1603 use?
The 1603 uses NPSM Female Pipe Swivel connections across its three ports.
Is the 1603 a swivel tee?
Yes. The 1603 is a Pipe Swivel Union Tee with female swivel connections.
What material is the 1603 made from?
The collection lists the 1603 in steel.
What pressure can the 1603 handle?
The collection lists working pressure up to 5,000 PSI, with the actual working pressure varying according to tube and fitting size.
What does NPSM mean?
NPSM means National Pipe Straight Mechanical, referring to a straight mechanical pipe-thread connection.
Why use a swivel union tee?
A swivel union tee provides three hydraulic connection points while allowing easier alignment and positioning of connected components during installation.
How do I choose the correct 1603?
Confirm the required NPSM connection sizes on all three ports, verify compatibility with the mating fittings, and check the pressure requirements and available installation space before ordering.
