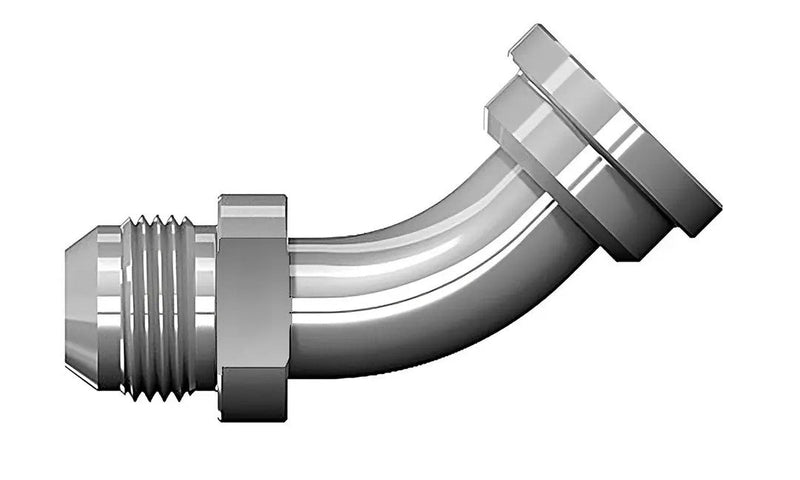

1803 JIC to No-Braze Flange Elbow 45° | Code 62 | 6000 PSI
Description
The 1803 JIC to No-Braze Flange Elbow 45° – Code 62 collection is engineered for high-pressure hydraulic systems where space constraints and flow direction changes require a reliable angled connection. These adapters feature a male JIC flare connection on one end and a Code 62 no-braze flange on the other, delivering a secure, leak-resistant flange-to-block interface commonly used in heavy equipment hydraulics.
Key Features
- Code 62 high-pressure compliance (up to 6,000 PSI)
- 45° elbow for improved hose routing
- Male JIC to no-braze flange connection
- One-piece steel construction
- Widely used in heavy equipment hydraulics
Common Applications
- Hydraulic pumps and valve blocks
- Mobile construction equipment
- Mining and industrial machinery
- High-pressure oil flow systems
- OEM replacement and hydraulic repair
Code 62 fittings are specifically designed for high-pressure applications up to 6,000 PSI, making them suitable for demanding environments such as construction machinery, mining equipment, agricultural hydraulics, and industrial power units. In contrast, Code 61 adapters are rated up to 3,000 PSI, making Code 62 the preferred choice for high-load systems.
Each fitting is manufactured from steel with a one-piece forged body, ensuring superior strength, dimensional accuracy, and long service life. The 45-degree elbow design helps reduce hose stress, improve routing, and maintain optimal hydraulic flow without sharp bends.
