What Makes FS6540 Different?
FS6540 is designed for situations where the hydraulic system has an ORB port but the hose or tube assembly uses an ORFS connection.
Rather than combining separate fittings to make the transition, FS6540 provides both connection styles in one straight adapter.
The female ORFS swivel also gives the connected assembly rotational flexibility during installation, helping with alignment in areas where a fixed ORFS connection may be inconvenient.
Male ORB Connection
The male side of FS6540 uses an O-Ring Boss (ORB) straight thread.
Unlike tapered pipe threads, ORB fittings use a straight thread together with an O-ring to create the sealing interface against the compatible port. The O-ring provides the seal while the threads provide mechanical engagement.
This makes proper O-ring condition, correct port size, and correct installation important when assembling the fitting.
Female ORFS Swivel Connection
The opposite end is a Female ORFS Swivel.
ORFS uses a flat-face sealing arrangement with an elastomeric O-ring. When connected to the correct male ORFS component, the O-ring forms the sealing interface at the face.
The swivel feature is particularly useful during installation because the connection can be positioned without unnecessarily twisting the connected hose or tube.
Straight Stud Design
FS6540 uses a straight configuration, making it suitable when the ORB port and ORFS connection are positioned on the same axis.
This makes the fitting useful for:
- Direct ORB-to-ORFS connections
- Hydraulic manifold ports
- Hose-to-port connections
- Compact equipment layouts
- Hydraulic valve connections
- Pump and cylinder plumbing
If a directional change is required, a 45° or 90° ORFS-to-ORB fitting would be more appropriate.
Steel Construction for Demanding Applications
FS6540 is offered in steel construction, providing the durability required for demanding hydraulic systems. Gear House Hydraulics identifies the fitting for high-pressure applications and continuous mechanical-shock environments.
Industry listings for the FS6540 series specify carbon steel construction and identify the adapter as a straight Female ORFS Swivel × Male ORB connector.
This makes the fitting suitable for applications involving:
- Vibration
- Mechanical shock
- Pressure cycling
- Continuous machine operation
- Mobile equipment movement
Why the ORFS Swivel Matters
The swivel connection is one of the most useful features of FS6540.
When installing a hydraulic hose, the hose should not be forced into an unnatural orientation simply to line up with a fixed fitting. The swivel allows easier positioning of the ORFS connection before final tightening.
This can help:
- Improve hose alignment
- Reduce installation stress
- Simplify assembly
- Make maintenance easier
- Improve routing in confined areas
- Reduce unnecessary hose twisting
Applications
FS6540 can be used across a wide range of hydraulic and fluid-power applications, including:
- Mobile hydraulic equipment
- Construction machinery
- Agricultural equipment
- Industrial hydraulic systems
- Hydraulic manifolds
- Pumps and valves
- Hydraulic cylinders
- Heavy equipment
- OEM hydraulic assemblies
- Manufacturing machinery
- High-pressure fluid power systems
Its straight design is particularly useful where the hydraulic port and hose connection are already aligned.
FS6540 Features & Benefits
- Male ORB × Female ORFS Swivel
- Straight stud configuration
- ORB O-ring sealing
- ORFS O-ring face sealing
- Female swivel for easier alignment
- Steel construction
- Suitable for high-pressure applications
- Working pressure up to 6,000 PSI, size dependent
- Designed for vibration and mechanical shock
- Multiple connection sizes
- Compact ORB-to-ORFS transition
A Practical ORB-to-ORFS Connection
FS6540 solves a specific hydraulic connection problem: connecting an ORFS hose or tube assembly to an ORB port without stacking multiple adapters.
Its straight configuration keeps the connection compact, while the female ORFS swivel gives the installer more freedom to position the connected line.
For hydraulic systems where connection compatibility and installation flexibility both matter, FS6540 provides a straightforward solution.
Why Choose Gear House Hydraulics?
Gear House Hydraulics offers FS6540 Male ORB to Female ORFS Swivel adapters for demanding hydraulic applications.
Before ordering, confirm:
- ORB port size
- ORFS connection size
- Male/female connection requirements
- Available installation space
- Hose or tube specifications
- Pressure requirements of the complete system
Selecting the correct configuration helps ensure proper fitment, sealing, and hydraulic performance.
Frequently Asked Questions
What is an FS6540 fitting?

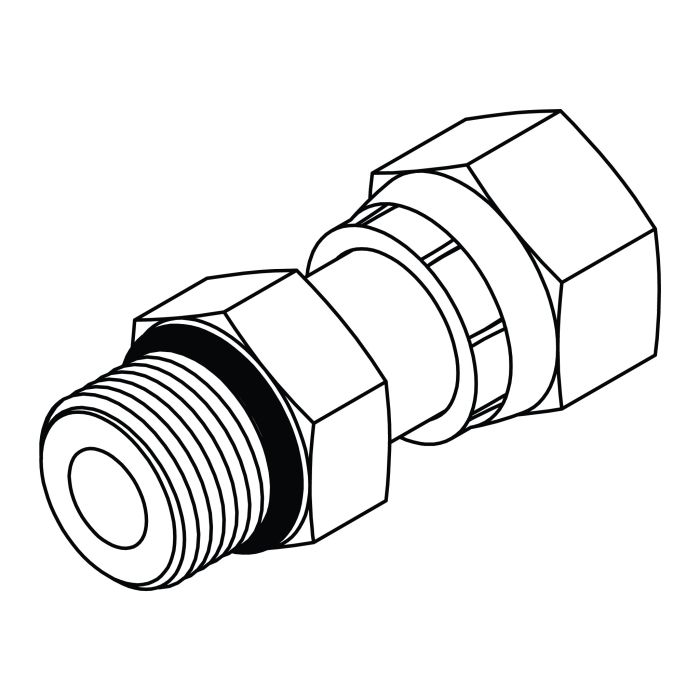

FS6540 is a straight hydraulic adapter connecting a Male ORB port to a Female ORFS Swivel connection.
What does FS6540 connect?
It connects Male O-Ring Boss (ORB) × Female ORFS Swivel.
Is FS6540 straight or angled?
FS6540 is a straight stud adapter.
What is the benefit of the female ORFS swivel?
The swivel allows easier rotational alignment during installation and helps reduce twisting or positioning stress on the connected hydraulic line.
What type of seal does the ORFS side use?
The ORFS side uses an O-Ring Face Seal.
What type of seal does the ORB side use?
The ORB side uses a straight thread with an O-ring to seal against the compatible hydraulic port.
What material is FS6540 made from?
FS6540 is available in steel, with industry listings specifying carbon steel construction for the series.
What pressure can FS6540 handle?
Gear House Hydraulics lists working pressure up to 6,000 PSI, depending on tube and fitting size.
What sizes are available?
Gear House currently displays 3/8", 1/2", 3/4", and 1" configurations, while the broader FS6540 series includes additional size combinations.
Where is FS6540 used?
It is suitable for mobile hydraulics, construction equipment, agricultural machinery, industrial systems, hydraulic manifolds, pumps, valves, cylinders, and OEM equipment.
Is FS6540 suitable for high-vibration applications?
Yes. Gear House Hydraulics specifically lists the series for applications containing continuous mechanical shock.
Is FS6540 an ORFS-to-ORB adapter?
Yes. It provides a Male ORB to Female ORFS Swivel connection in a straight configuration.
