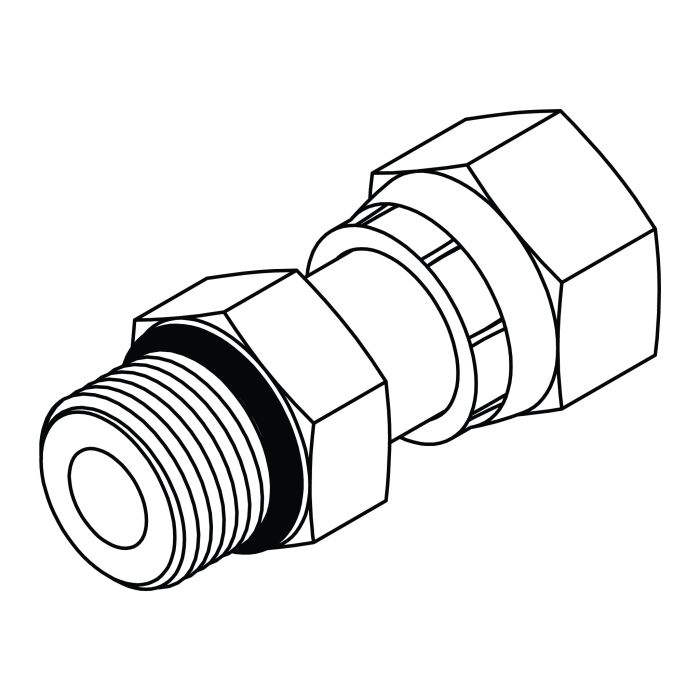

FS6540-06-06 Male O-Ring to Female ORFS Swivel Stud Straight

FS6540-06-06 Male O-Ring to Female ORFS Swivel Stud Straight | Steel Hydraulic Adapter

The FS6540-06-06 Male O-Ring to Female ORFS Swivel Stud Straight is a hydraulic straight adapter designed to connect a male O-ring (ORB-style) port to a female ORFS swivel connection. It provides a reliable transition between two common hydraulic sealing systems while maintaining a secure, leak-resistant connection.

Manufactured from high-strength steel, this fitting is built for industrial hydraulic applications where durability, vibration resistance, and high-pressure sealing performance are required.

Specifications

• Part Number: FS6540-06-06
• Material: Steel
• Shape: Straight
• Thread 1 Type: Male O-Ring (ORB)
• Thread 1 Nominal Size: 06
• Thread 1 Size: 9/16-18 UNF
• Thread 2 Type: Female O-Ring Face Seal (ORFS) Swivel
• Thread 2 Nominal Size: 06
• Thread 2 Size: 11/16-16 UNF
