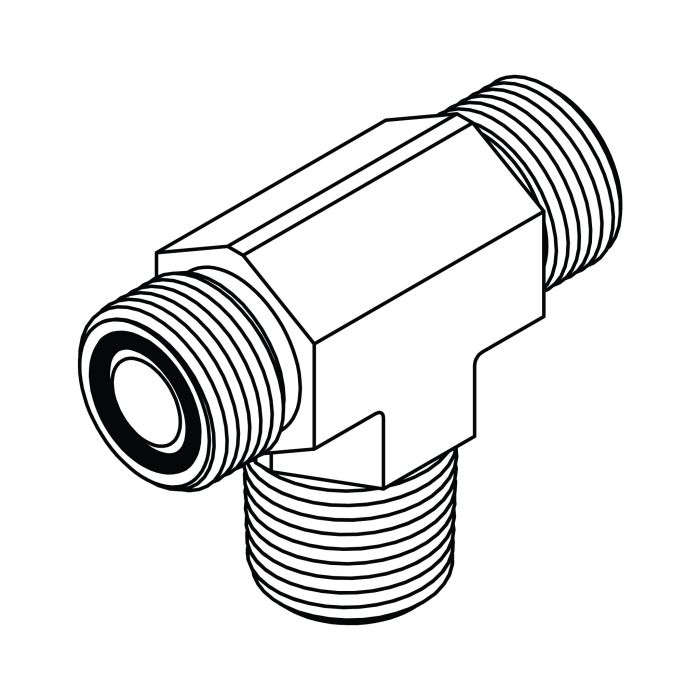

FS2601-06-06-06 ORFS to Pipe Branch Tee

FS2601-06-06-06 ORFS to Pipe Branch Tee | Steel Hydraulic Adapter

The FS2601-06-06-06 ORFS to Pipe Branch Tee is a hydraulic tee fitting designed to connect two 3/8" (11/16-16) Male O-Ring Face Seal (ORFS) (-06) ports with a 3/8"-18 Male Pipe (NPT) (-06) branch connection. It enables hydraulic flow splitting or system branching while maintaining secure sealing and stable performance under pressure.

Manufactured from high-strength steel and built to SAE 520425 standards, this branch tee is engineered for durability, vibration resistance, and long service life in demanding hydraulic systems. The ORFS connections use flat-face O-ring sealing technology for excellent leak prevention, while the pipe-thread branch provides compatibility with standard hydraulic piping systems.

Specifications

• Part Number: FS2601-06-06-06
• Material: Steel
• Shape: Tee (Branch Tee)
• Thread 1: Male ORFS (-06)
• Thread 1 Size: 11/16-16
• Thread 2: Male ORFS (-06)
• Thread 2 Size: 11/16-16
• Thread 3: Male Pipe (NPT) (-06)
• Thread 3 Size: 3/8-18
• Standard: SAE 520425
