Connect, Split, and Direct Hydraulic Flow

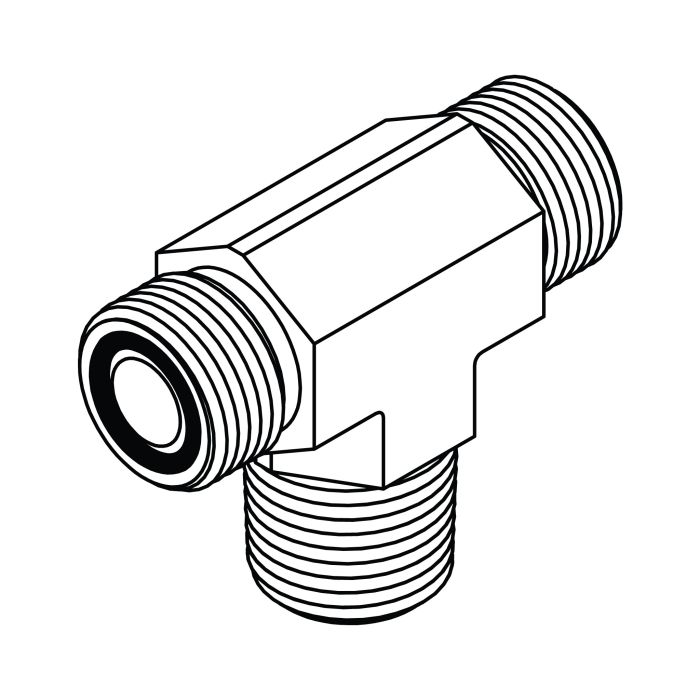

When a hydraulic circuit needs an additional branch, the FS2601 Branch Tee provides a compact connection point for distributing fluid between multiple lines.
Instead of combining several adapters to create a branch, this tee fitting provides the required connection arrangement in one component. That can help keep hydraulic assemblies more organized while making installation and maintenance more practical.
ORFS Connection for Dependable Hydraulic Sealing
The ORFS side uses an O-Ring Face Seal configuration designed for hydraulic applications where reliable sealing is important.
The flat-face sealing arrangement uses an O-ring at the connection interface. Proper sizing, alignment, and installation are important to achieve dependable sealing performance and reduce the risk of hydraulic leakage.
ORFS to Pipe Connection
The FS2601 is designed to bridge ORFS hydraulic connections and pipe-threaded connections, making it useful for hydraulic systems that incorporate different connection types.
This makes the fitting particularly practical for equipment where hydraulic hoses or tube assemblies need to connect with pipe-threaded components such as valves, manifolds, pumps, or other hydraulic equipment.
Branch Tee Design for Flexible Routing
The tee configuration gives the FS2601 an important advantage when hydraulic flow needs to be divided or redirected.
It can help with:
- Creating an additional hydraulic branch
- Distributing fluid between connected lines
- Connecting ORFS lines to pipe-threaded components
- Simplifying hydraulic routing
- Reducing the number of individual adapters required
- Building more compact hydraulic assemblies
- Connecting multiple hydraulic components within limited installation space
Steel Construction for Heavy-Duty Hydraulic Systems
The FS2601 collection is listed with steel construction, providing a strong fitting option for demanding hydraulic environments.
Its robust configuration is suitable for mobile and industrial equipment where hydraulic fittings can be exposed to vibration, pressure cycling, and mechanical shock.
High-Pressure Hydraulic Capability
The FS2601 is designed for high-pressure applications, with Gear House listing working pressures up to 6,000 PSI depending on tube and fitting size. The product is also identified for applications involving continuous mechanical shock.
For systems operating at high or extreme pressure, always select the correct fitting size and ensure that the complete hydraulic assembly is properly rated and installed.
Available Size Options
The FS2601 collection includes multiple size configurations to accommodate different hydraulic line and pipe requirements.
Current listed options include:
- FS2601-04-04-04
- FS2601-06-06-04
- FS2601-06-06-06
- FS2601-08-08-06
- FS2601-08-08-08
- FS2601-12-12-12
- FS2601-16-16-16
Gear House also lists size categories from 1/4" through 1", including equal and reducing configurations.
Always match the fitting size to the corresponding ORFS connection, pipe port, hose/tube assembly, and system requirements.
Applications for FS2601 Branch Tee Fittings
The FS2601 is a practical choice for hydraulic systems that require branching and connection conversion.
Typical applications include:
- Construction equipment
- Mobile hydraulic machinery
- Agricultural equipment
- Industrial hydraulic systems
- Hydraulic manifolds
- Pumps and valves
- Manufacturing equipment
- OEM hydraulic assemblies
- Fluid-power systems
- High-pressure hydraulic circuits
Why Choose FS2601 ORFS to Pipe Branch Tees?
The FS2601 combines branching capability, ORFS sealing, and pipe-thread connection in one hydraulic fitting.
Key Benefits
- ORFS to pipe connection
- Branch tee configuration
- O-Ring Face Seal design
- Steel construction
- Multiple size configurations
- Working pressure up to 6,000 PSI depending on size
- Suitable for high-pressure hydraulic systems
- Designed for applications with continuous mechanical shock
- Helps simplify hydraulic line distribution
- Useful for compact hydraulic installations
Built for Practical Hydraulic Assembly
A well-planned hydraulic system needs fittings that match both the connection type and the routing requirements. The FS2601 provides a purpose-built branch connection for systems where ORFS and pipe-threaded components need to work together.
Its compact tee design can help reduce unnecessary connections and create a cleaner layout around hydraulic manifolds, valves, machinery frames, and other components.
Choose Gear House Hydraulics
For hydraulic systems requiring a dependable branch connection between ORFS and pipe-threaded components, the FS2601 ORFS to Pipe Branch Tee offers a practical solution.
Gear House Hydraulics provides multiple FS2601 configurations so you can select the fitting size that matches your hydraulic assembly.
Choose the correct FS2601 configuration and build a hydraulic system designed for reliable fluid distribution and demanding service conditions.
Frequently Asked Questions
What is an FS2601 ORFS to Pipe Branch Tee?
The FS2601 is a hydraulic branch tee fitting designed to connect ORFS and pipe-threaded connections while providing an additional branch for fluid distribution.
What type of seal does the ORFS connection use?
The ORFS side uses an O-Ring Face Seal design. Correct sizing, alignment, and installation are important for reliable sealing.
What material is the FS2601 made from?
The Gear House collection lists steel as the material.
What pressure can FS2601 fittings handle?
Gear House lists working pressure up to 6,000 PSI, depending on tube and fitting size.
What sizes are available?
The collection currently lists configurations including FS2601-04-04-04, FS2601-06-06-04, FS2601-06-06-06, FS2601-08-08-06, FS2601-08-08-08, FS2601-12-12-12, and FS2601-16-16-16, with size categories ranging from 1/4" through 1".
Where are ORFS to pipe branch tees used?
They are suitable for construction equipment, mobile hydraulics, agricultural machinery, industrial hydraulic systems, manifolds, pumps, valves, and other fluid-power applications requiring a branch connection.
