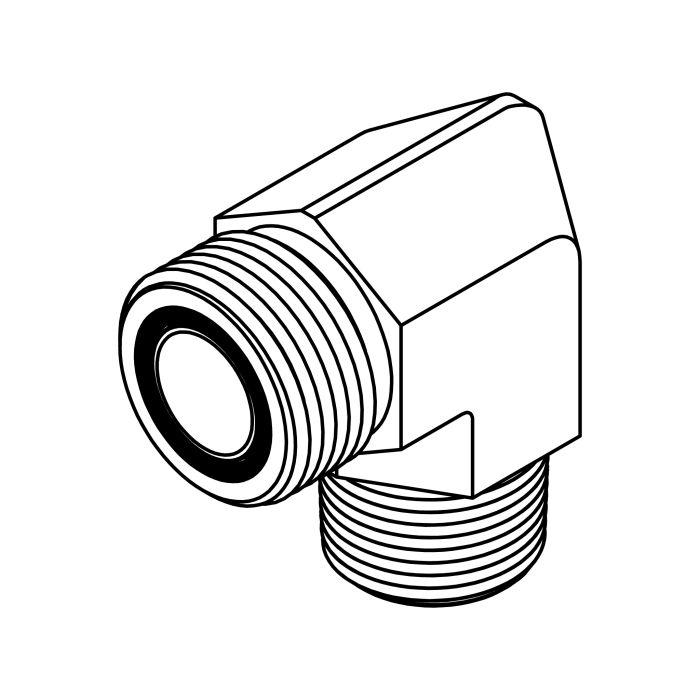

FS2501-06-06 ORFS to Pipe Elbow 90°

FS2501-06-06 ORFS to Pipe Elbow 90° | Steel Hydraulic Adapter

The FS2501-06-06 ORFS to Pipe Elbow 90° is a hydraulic adapter designed to connect a 3/8" (11/16-16) Male O-Ring Face Seal (ORFS) (-06) port to a 3/8"-18 Male Pipe (NPT) (-06) connection at a 90-degree angle. It provides a reliable transition between ORFS hydraulic systems and pipe-thread components while maintaining secure, leak-resistant performance.

Manufactured from high-strength steel and built to SAE 520202 standards, this elbow fitting is engineered for demanding hydraulic applications where durability, vibration resistance, and sealing integrity are essential. The ORFS side uses a flat-face O-ring seal for high-pressure performance, while the pipe-thread side ensures compatibility with standard hydraulic piping systems.

Specifications

• Part Number: FS2501-06-06
• Material: Steel
• Shape: 90° Elbow
• Thread 1: Male ORFS (-06)
• Thread 1 Size: 11/16-16
• Thread 2: Male Pipe (NPT) (-06)
• Thread 2 Size: 3/8-18
• Standard: SAE 520202
