Make ORFS-to-Pipe Connections Easier

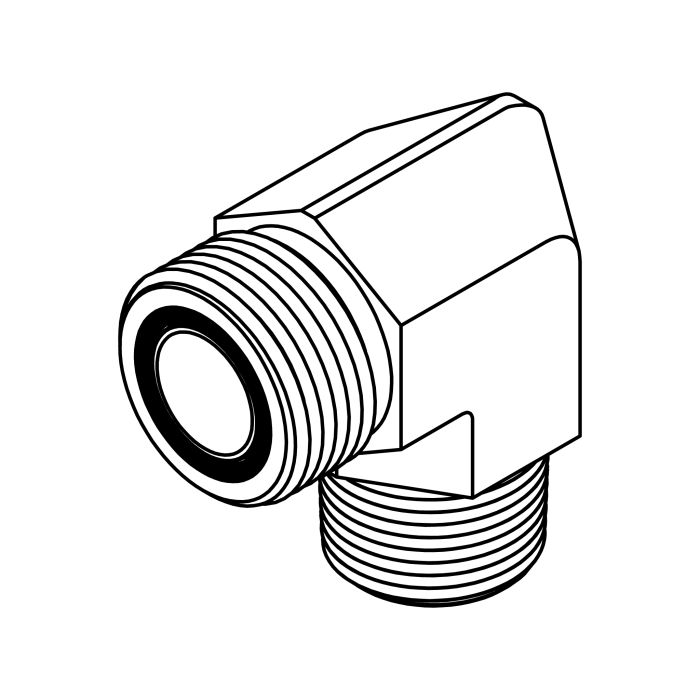

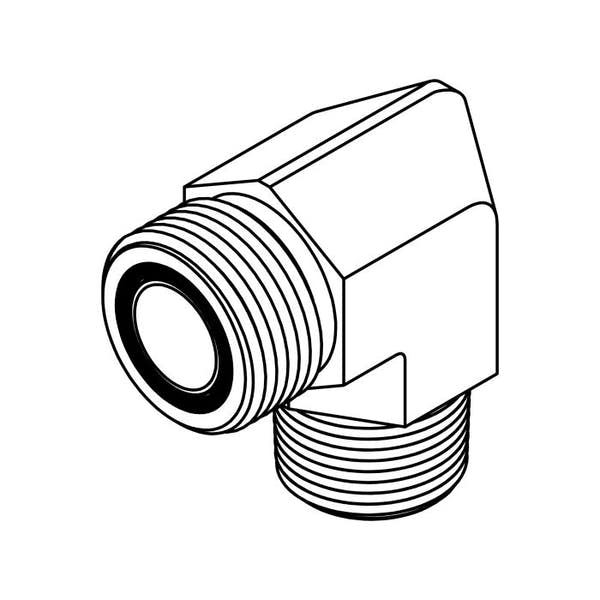

Hydraulic systems often combine different connection types, especially when equipment uses ORFS hydraulic lines alongside pipe-threaded ports. The FS2501 ORFS to Pipe Elbow provides a direct connection between these systems while changing the flow direction by 90 degrees.
Instead of forcing a hose or tube into an awkward position, the elbow helps create a cleaner routing path around equipment frames, valves, manifolds, and other components.
Male ORFS Connection for Reliable Sealing
The ORFS side uses a flat-face O-ring sealing design. The O-ring creates the primary sealing interface when the fitting is correctly assembled against the matching ORFS connection.
This makes the FS2501 suitable for hydraulic applications where leak prevention and connection reliability are important, particularly in systems exposed to pressure cycling and vibration.
Male Pipe Thread Connection
The second connection is a Male Pipe thread, allowing the FS2501 to connect ORFS hydraulic lines with compatible pipe-threaded ports and components.
Correct thread identification is important before installation. Make sure the pipe thread type and size match the mating port and follow the appropriate installation procedure for the connection being used.
90° Design for Better Hydraulic Routing
The biggest advantage of the FS2501 is its 90-degree elbow configuration.
It helps:
- Change hydraulic line direction
- Route lines around equipment components
- Reduce unnecessary hose bending
- Improve installation in confined areas
- Create more organized hydraulic assemblies
- Connect ORFS lines to pipe ports without using multiple fittings
This makes the FS2501 especially useful when a straight adapter would create poor routing or excessive space requirements.
Forged Carbon Steel Construction
The FS2501 is manufactured from forged carbon steel, providing the strength and durability expected in demanding hydraulic applications.
Its robust construction makes it suitable for mobile equipment, industrial machinery, construction hydraulics, agricultural equipment, and other fluid-power systems where fittings may experience vibration, pressure cycling, and mechanical loads.
Available Size Combinations
Gear House Hydraulics offers the FS2501 in multiple ORFS-to-pipe size combinations, including:
- 1/4" × 1/8"
- 1/4" × 1/4"
- 1/4" × 3/8"
- 3/8" × 1/4"
- 3/8" × 3/8"
- 3/8" × 1/2"
- 1/2" × 1/4"
- 1/2" × 3/8"
- 1/2" × 1/2"
- 1/2" × 3/4"
- 5/8" × 1/2"
- 5/8" × 3/4"
- 3/4" × 1/2"
- 3/4" × 3/4"
- 1" × 1"
- 1-1/4" × 1-1/4"
The collection also includes reducing combinations, giving you more flexibility when connecting hydraulic lines and pipe ports of different sizes.
Built for Demanding Hydraulic Systems
The FS2501 is suited for applications where a secure ORFS-to-pipe transition and compact routing are required.
Common applications include:
- Construction equipment
- Mobile hydraulic machinery
- Agricultural equipment
- Industrial hydraulic systems
- Hydraulic hose assemblies
- Pumps and valves
- Hydraulic manifolds
- Manufacturing equipment
- OEM hydraulic assemblies
- High-pressure fluid-power systems
Why Choose FS2501 ORFS to Pipe Elbows?
The FS2501 gives hydraulic installers a straightforward way to solve both connection compatibility and routing problems in one fitting.
Key benefits include:
- Male ORFS × Male Pipe connection
- 90° elbow configuration
- Forged carbon steel construction
- ORFS O-ring face sealing
- Multiple size combinations
- Useful for compact hydraulic layouts
- Suitable for demanding fluid-power applications
- Helps simplify hydraulic line routing
- Designed for professional hydraulic assemblies
Choose Gear House Hydraulics
When your hydraulic system needs an ORFS-to-pipe transition with a 90-degree turn, the FS2501 Hydraulic Elbow Adapter provides a practical and durable connection solution.
Gear House Hydraulics offers multiple FS2501 configurations so you can select the correct connection and size for your hydraulic assembly.
Choose the right FS2501 size for your equipment and build a cleaner, more reliable hydraulic connection.
Frequently Asked Questions
What is an FS2501 ORFS to Pipe Elbow?
The FS2501 is a 90-degree hydraulic adapter that connects a Male ORFS connection to a compatible Male Pipe/NPTF connection.
What type of seal does the ORFS side use?
The ORFS side uses an O-Ring Face Seal, with the O-ring providing the primary sealing interface when properly assembled.
What material is the FS2501 made from?
The product is listed as forged carbon steel, providing strength for demanding hydraulic applications.
Why use a 90-degree ORFS-to-pipe adapter?
A 90-degree design helps redirect hydraulic lines around components and can make installations more practical where a straight fitting would create routing or clearance problems.
What sizes are available?
The FS2501 collection includes multiple ORFS-to-pipe combinations, from smaller 1/4-inch connections through 1-1/4-inch configurations, including several reducing sizes.
Where can FS2501 elbows be used?
They are suitable for mobile and construction equipment, agricultural machinery, industrial hydraulic systems, OEM assemblies, manifolds, pumps, valves, and other fluid-power applications.
