FS2501-04-02 ORFS to Pipe Elbow 90°

FS2501-04-02 ORFS to Pipe Elbow 90° | Steel Hydraulic Adapter

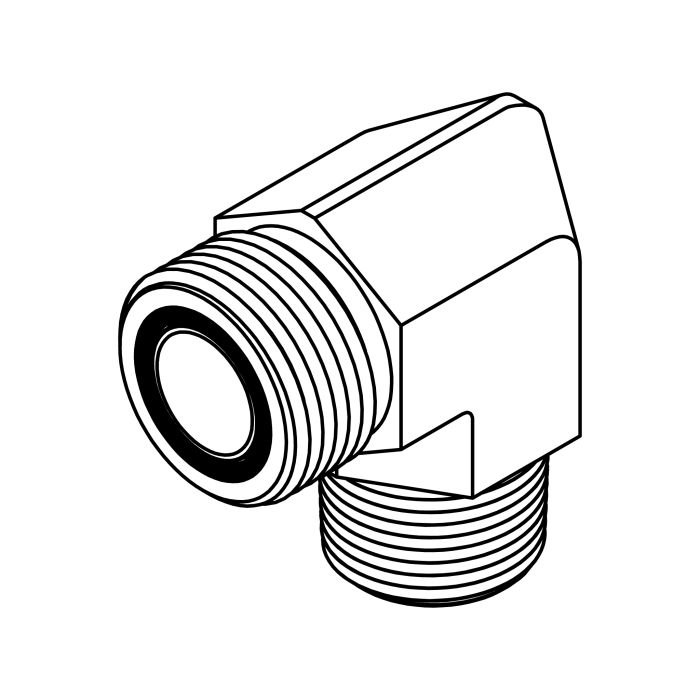

The FS2501-04-02 ORFS to Pipe Elbow 90° is a compact hydraulic adapter designed to connect a 1/4" (9/16-18) Male O-Ring Face Seal (ORFS) (-04) port to a 1/8"-27 Male Pipe (NPT) (-02) connection at a 90-degree angle. This fitting provides an efficient transition between ORFS and pipe-thread systems while maintaining a secure and leak-resistant hydraulic seal.

Manufactured from high-strength steel and built to SAE 520202 standards, this elbow fitting is engineered for demanding hydraulic applications where durability, vibration resistance, and reliable sealing are essential. The ORFS side uses a flat-face O-ring seal for high-pressure performance, while the pipe thread side ensures compatibility with standard threaded piping systems.

Specifications

• Part Number: FS2501-04-02
• Material: Steel
• Shape: 90° Elbow
• Thread 1: Male ORFS (-04)
• Thread 1 Size: 9/16-18
• Thread 2: Male Pipe (NPT) (-02)
• Thread 2 Size: 1/8-27
• Standard: SAE 520202
