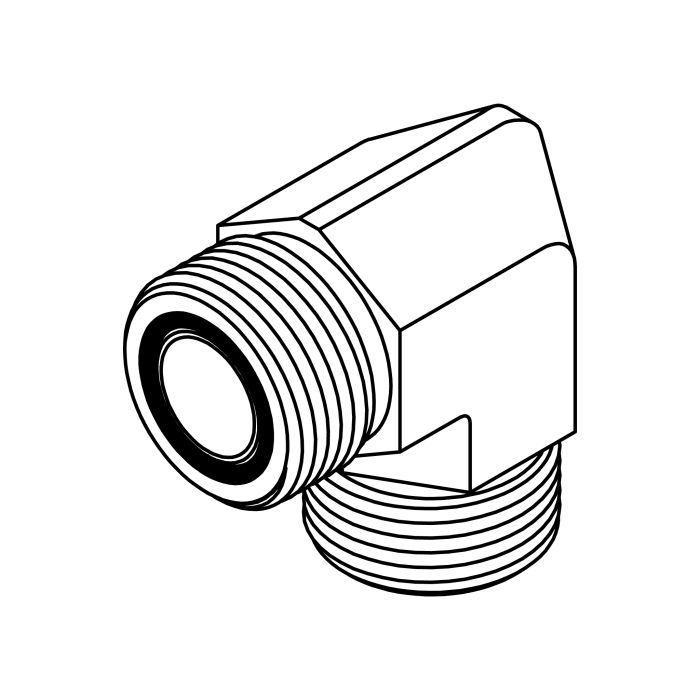

FS2500-24-24 ORFS Union Elbow 90°

FS2500-24-24 ORFS Union Elbow 90° | Steel Hydraulic Adapter

The FS2500-24-24 ORFS Union Elbow 90° is a heavy-duty hydraulic adapter designed to connect two 1 1/2" (2-12) Male O-Ring Face Seal (ORFS) (-24) ports at a 90-degree angle. Its elbow configuration enables efficient hydraulic line routing in tight installations while maintaining strong sealing performance and smooth fluid flow.

Manufactured from high-strength steel and built to SAE 520201 standards, this fitting is engineered for demanding hydraulic systems where durability, leak prevention, and vibration resistance are essential. The ORFS (O-Ring Face Seal) system uses a precision-machined flat sealing surface combined with an elastomer O-ring, ensuring reliable, leak-free operation under high pressure and dynamic working conditions.

Specifications

• Part Number: FS2500-24-24
• Material: Steel
• Shape: 90° Elbow
• Thread 1: Male ORFS (-24)
• Thread 1 Size: 2-12
• Thread 2: Male ORFS (-24)
• Thread 2 Size: 2-12
• Standard: SAE 520201
