Make Difficult Hydraulic Routing Easier

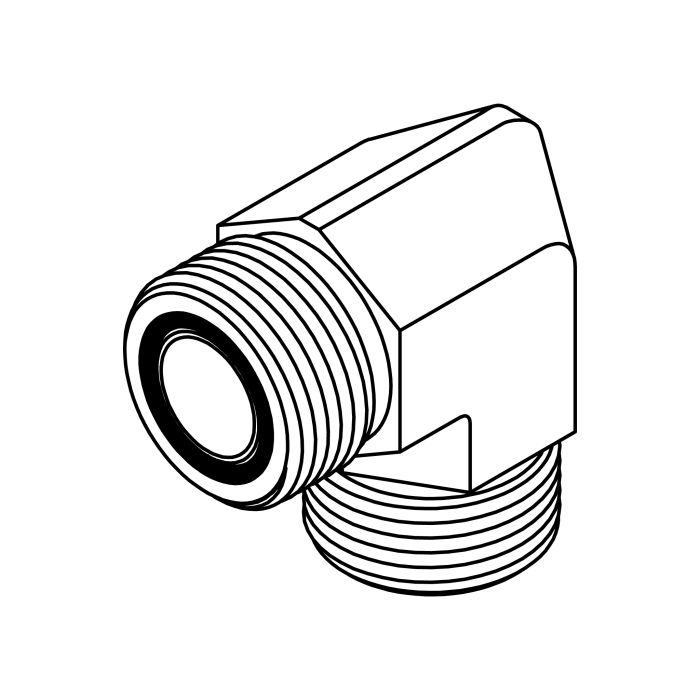

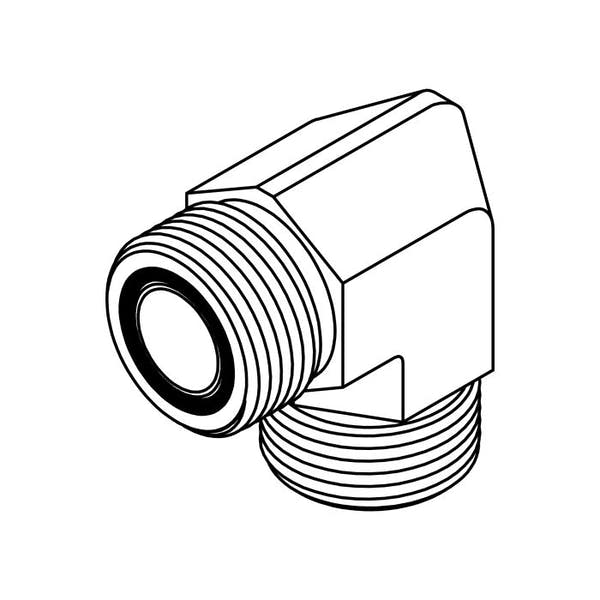

Straight connections are not always practical when hydraulic lines need to change direction. The FS2500 90° ORFS Union Elbow provides a clean 90-degree connection that helps route tubing and hydraulic lines where space or equipment layout requires a directional change.
Its elbow configuration can help reduce unnecessary bends in the hydraulic line while keeping the connection compact and properly aligned.
ORFS Face Seal for Reliable Connections
The FS2500 uses an O-Ring Face Seal (ORFS) connection designed for hydraulic applications where dependable sealing is important.
The ORFS design uses a flat sealing face with an O-ring to create the sealing interface. When the fitting is correctly sized, assembled, and aligned, this design provides a secure connection for demanding hydraulic service.
Designed for High-Pressure Applications
The FS2500 is intended for high-pressure hydraulic applications, with working pressures listed up to 6,000 PSI depending on tube and fitting size. The product page also identifies applications involving continuous mechanical shock.
For high-pressure installations, always match the fitting size and pressure capability with the complete hydraulic system and follow proper assembly procedures.
Steel Construction for Heavy-Duty Use
The FS2500 is offered in steel, making it suitable for demanding hydraulic equipment where strength and dependable performance are important.
From mobile machinery to industrial hydraulic systems, the fitting provides a robust connection point for applications where hydraulic lines need to turn 90 degrees without using unnecessary additional components.
Multiple ORFS Size Combinations
The FS2500 is available in a range of size combinations to support different hydraulic line requirements. Available configurations include:
- FS2500-04-04 — 1/4" × 1/4"
- FS2500-06-04 — 3/8" × 1/4"
- FS2500-06-06 — 3/8" × 3/8"
- FS2500-08-08 — 1/2" × 1/2"
- FS2500-10-08 — 5/8" × 1/2"
- FS2500-10-10 — 5/8" × 5/8"
- FS2500-12-08 — 3/4" × 1/2"
- FS2500-12-12 — 3/4" × 3/4"
- FS2500-16-16 — 1" × 1"
- FS2500-20-20 — 1-1/4" × 1-1/4"
- FS2500-24-24 — 1-1/2" × 1-1/2"
The Gear House page currently lists these size options, including both equal-size and reducing configurations.
Where FS2500 ORFS Elbows Are Used
The FS2500 is a strong fit for applications where hydraulic lines must make a 90-degree turn, including:
- Construction equipment
- Mobile hydraulic machinery
- Industrial hydraulic systems
- Heavy-duty fluid-power equipment
- Hydraulic manifolds
- Machinery exposed to vibration and mechanical shock
- High-pressure hydraulic circuits
- Compact hydraulic installations
Why Choose FS2500 ORFS Union Elbows?
Choosing the right elbow can make hydraulic routing cleaner, more practical, and easier to maintain.
FS2500 benefits include:
- 90° hydraulic line routing
- Male ORFS × Male ORFS connection
- O-Ring Face Seal design
- Steel construction
- High-pressure hydraulic capability
- Multiple size combinations
- Suitable for continuous mechanical shock applications
- Compact solution for directional changes
- Suitable for demanding industrial and mobile equipment
Buy FS2500 ORFS Union Elbows from Gear House Hydraulics
When hydraulic routing requires a dependable 90-degree connection, the FS2500 ORFS Union Elbow provides a purpose-built solution for ORFS hydraulic systems.
Gear House Hydraulics supplies hydraulic fittings designed for demanding fluid-power applications, giving you multiple FS2500 size options to match your system requirements.
Select the correct ORFS size and build your hydraulic assembly with a fitting designed for reliable high-pressure service.
Frequently Asked Questions
What is an FS2500 ORFS Union Elbow?
The FS2500 is a 90-degree ORFS union elbow with Male ORFS connections on both ends. It is designed to change hydraulic line direction while connecting two ORFS connections.
What pressure can the FS2500 handle?
The Gear House product page lists working pressures up to 6,000 PSI, depending on tube and fitting size.
What material is the FS2500 available in?
The Gear House page lists steel as the material option for the FS2500 series.
What sizes are available?
FS2500 is available in multiple combinations ranging from 1/4" × 1/4" to 1-1/2" × 1-1/2", along with selected reducing configurations.
Where are 90-degree ORFS union elbows used?
They are commonly used where hydraulic lines need a 90-degree directional change, especially in high-pressure, mobile, industrial, and shock-intensive hydraulic applications.
