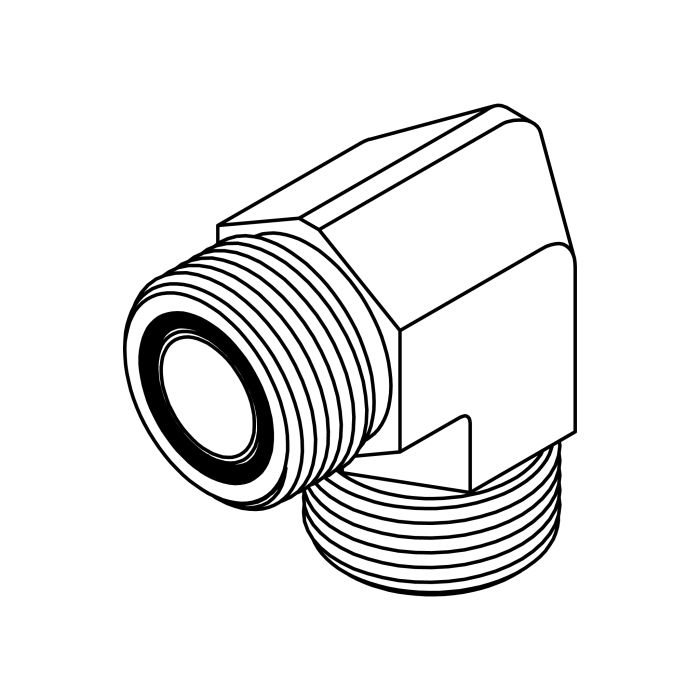

FS2500-10-10 ORFS Union Elbow 90°

FS2500-10-10 ORFS Union Elbow 90° | Steel Hydraulic Adapter

The FS2500-10-10 ORFS Union Elbow 90° is a hydraulic adapter designed to connect two 5/8" (1-14) Male O-Ring Face Seal (ORFS) (-10) ports at a 90-degree angle. Its compact elbow design allows efficient routing of hydraulic lines in tight spaces while maintaining smooth flow and secure, leak-free performance.

Manufactured from high-strength steel and built to SAE 520201 standards, this fitting is engineered for demanding hydraulic applications where durability, sealing reliability, and vibration resistance are essential. The ORFS (O-Ring Face Seal) system uses a precision-machined flat-face sealing surface with an elastomer O-ring, ensuring excellent sealing performance under high pressure and fluctuating operating conditions.

Specifications

• Part Number: FS2500-10-10
• Material: Steel
• Shape: 90° Elbow
• Thread 1: Male ORFS (-10)
• Thread 1 Size: 1-14
• Thread 2: Male ORFS (-10)
• Thread 2 Size: 1-14
• Standard: SAE 520201
