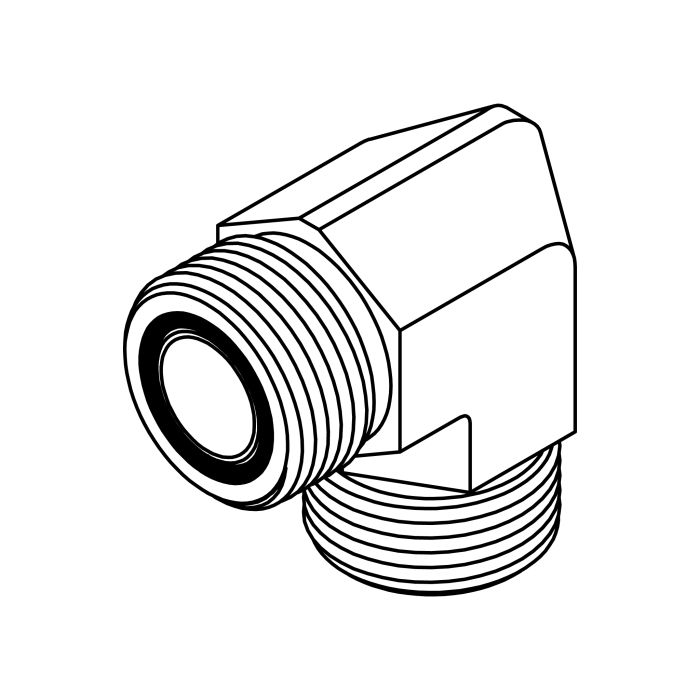

FS2500-06-06 ORFS Union Elbow 90°

FS2500-06-06 ORFS Union Elbow 90°

Regular price $6.15 USD
Regular price $6.21 USD Sale price $6.15 USD
Sale Sold out

FS2500-06-06 ORFS Union Elbow 90° | Steel Hydraulic Adapter

The FS2500-06-06 ORFS Union Elbow 90° is a hydraulic adapter designed to connect two 3/8" (11/16-16) Male O-Ring Face Seal (ORFS) (-06) ports at a 90-degree angle. Its elbow configuration allows efficient routing of hydraulic lines in confined spaces while maintaining optimal flow and reliable system performance.

Manufactured from high-strength steel and built to SAE 520201 standards, this fitting is engineered for demanding hydraulic applications where leak prevention, durability, and vibration resistance are critical. The ORFS (O-Ring Face Seal) design uses a precision-machined flat-face seal with an elastomer O-ring, providing superior sealing performance under high pressure and fluctuating operating conditions.

Specifications

  • Part Number: FS2500-06-06
  • Material: Steel
  • Shape: 90° Elbow
  • Thread 1: Male ORFS (-06)
  • Thread 1 Size: 11/16-16
  • Thread 2: Male ORFS (-06)
  • Thread 2 Size: 11/16-16
  • Standard: SAE 520201
