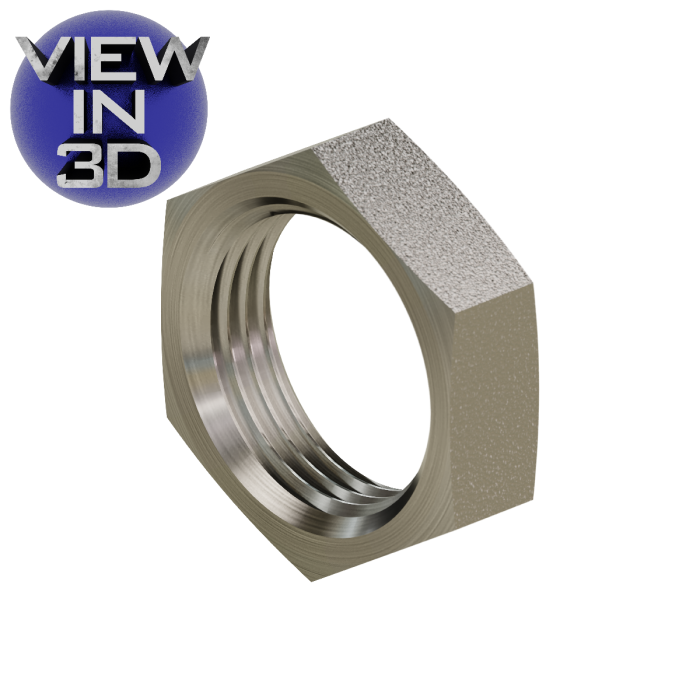

FS0306-16 – JIC Bulkhead Locknut (1-5/16-12)
Overview:
The FS0306-16 Bulkhead Locknut provides a secure fastening solution for mid-size JIC bulkhead fittings. Designed for durability and resistance to vibration, it ensures long-term system integrity in hydraulic assemblies.
Specifications
-
Material: Steel
-
Shape: Nut
-
Thread Type: Female JIC
-
Nominal Size: 16
-
Thread Size: 1-5/16-12
-
Compliance: MS 51860, SAE 070118
Features
-
Reliable bulkhead retention
-
SAE-standard threading
-
Strong steel construction
Applications
- Hydraulic manifolds
-
Industrial equipment
-
Fluid power systems
