Keep Bulkhead Fittings Secure

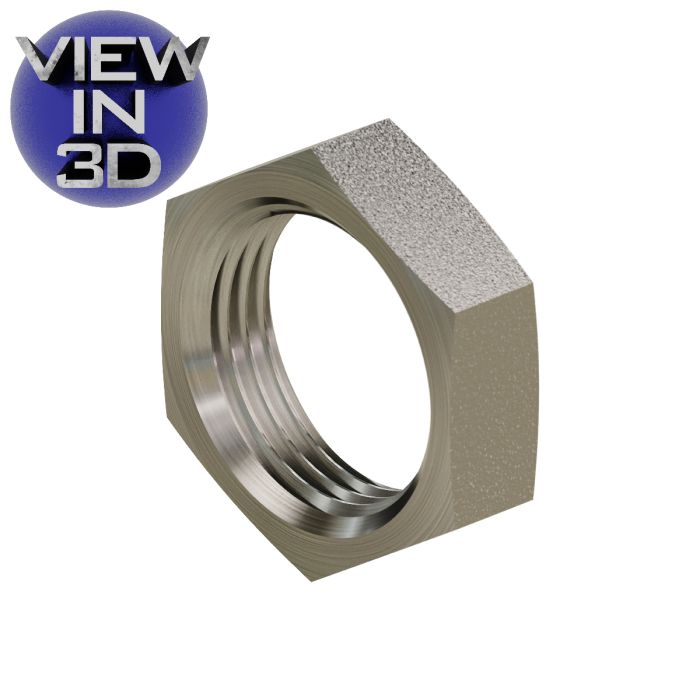

A bulkhead fitting needs more than the correct connection it also needs to stay securely positioned through the mounting surface. The FS0306 JIC Bulkhead Locknut provides the threaded fastening needed to hold compatible bulkhead fittings firmly against panels, brackets, and equipment walls.
This makes it a practical choice for hydraulic equipment exposed to vibration, movement, and continuous mechanical shock.
Steel Construction for Demanding Hydraulic Systems
FS0306 locknuts are manufactured from steel to provide the strength and durability needed for industrial hydraulic installations. Their robust construction makes them suitable for equipment where fittings must remain rigidly mounted during operation.
Precision Female JIC Threading
The FS0306 uses a Female JIC thread configuration designed for compatible JIC bulkhead fitting assemblies. Proper thread engagement helps maintain a secure mechanical connection and supports reliable installation in high-pressure hydraulic systems.
Designed for Bulkhead & Panel-Mount Applications
FS0306 locknuts are particularly useful when hydraulic fittings need to pass through a fixed mounting surface. Common applications include:
- Hydraulic bulkhead installations
- Mobile hydraulic equipment
- Industrial machinery
- High-pressure fluid power systems
- OEM hydraulic assemblies
- Equipment exposed to vibration and mechanical shock
Available JIC Sizes
Gear House Hydraulics offers FS0306 locknuts in multiple sizes, including:
- FS0306-04: 7/16-20
- FS0306-06: 9/16-18
- FS0306-08: 3/4-16
- FS0306-10: 7/8-14
- FS0306-12: 1-1/16-12
- FS0306-16: 1-5/16-12
- FS0306-20: 1-5/8-12
- FS0306-24: 1-7/8-12
Always select the locknut size that matches the compatible bulkhead fitting and hydraulic assembly.
Why Choose FS0306 JIC Bulkhead Locknuts?
- Strong steel construction
- Designed specifically for bulkhead mounting
- Female JIC thread configuration
- Helps keep fittings securely positioned
- Suitable for high-vibration environments
- Designed for demanding hydraulic equipment
- Multiple sizes available
- Rated up to 6,000 PSI, depending on size
Choose Gear House Hydraulics
When you need a dependable component for securing JIC bulkhead fittings, Gear House Hydraulics provides FS0306 steel bulkhead locknuts in a range of commonly used sizes. Select the correct thread size for your fitting assembly and keep your hydraulic installation securely mounted.
FAQs
What is an FS0306 JIC Bulkhead Locknut?
FS0306 is a steel locknut designed to secure compatible JIC bulkhead fittings through panels, brackets, and equipment walls.
What material is FS0306 made from?
FS0306 JIC Bulkhead Locknuts are made from steel.
What type of thread does FS0306 use?
The FS0306 uses a Female JIC thread configuration.
What pressure can FS0306 handle?
Working pressure is rated up to 6,000 PSI, depending on the tube and fitting size. System compatibility and proper design should always be confirmed for high-pressure applications.
Where are JIC bulkhead locknuts used?
They are commonly used in hydraulic bulkhead installations, industrial machinery, mobile equipment, OEM assemblies, and systems exposed to vibration or mechanical shock.
What sizes are available?
FS0306 is currently offered in sizes from -04 through -24, including -04, -06, -08, -10, -12, -16, -20, and -24.
