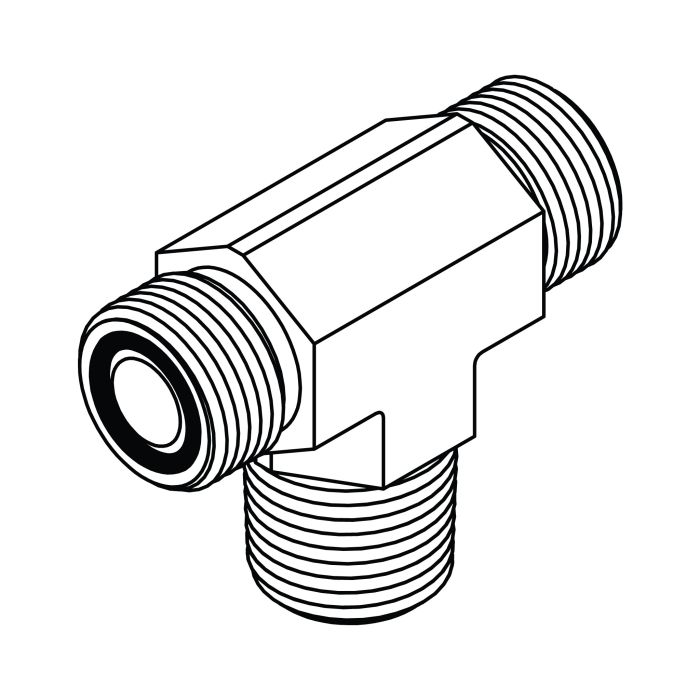

F2601-08-08-08 ORFS to Pipe Branch Tee

F2601-08-08-08 ORFS to Pipe Branch Tee | Steel Hydraulic Adapter

The F2601-08-08-08 ORFS to Pipe Branch Tee is a hydraulic tee fitting designed to connect two 1/2" (13/16-16) Male O-Ring Face Seal (ORFS) (-08) ports with a 1/2"-14 Male Pipe (NPT) (-08) branch connection. Its tee configuration allows fluid distribution or line branching within hydraulic systems while maintaining strong sealing integrity and reliable performance.

Manufactured from high-strength steel and built to SAE 520425 standards, this branch tee is engineered for demanding hydraulic applications where vibration resistance, durability, and leak-free operation are essential. The ORFS connections use flat-face O-ring sealing technology for superior high-pressure performance, while the pipe-thread branch provides compatibility with standard hydraulic piping systems.

Specifications

• Part Number: F2601-08-08-08
• Material: Steel
• Shape: Tee (Branch Tee)
• Thread 1: Male ORFS (-08)
• Thread 1 Size: 13/16-16
• Thread 2: Male ORFS (-08)
• Thread 2 Size: 13/16-16
• Thread 3: Male Pipe (NPT) (-08)
• Thread 3 Size: 1/2-14
• Standard: SAE 520425
