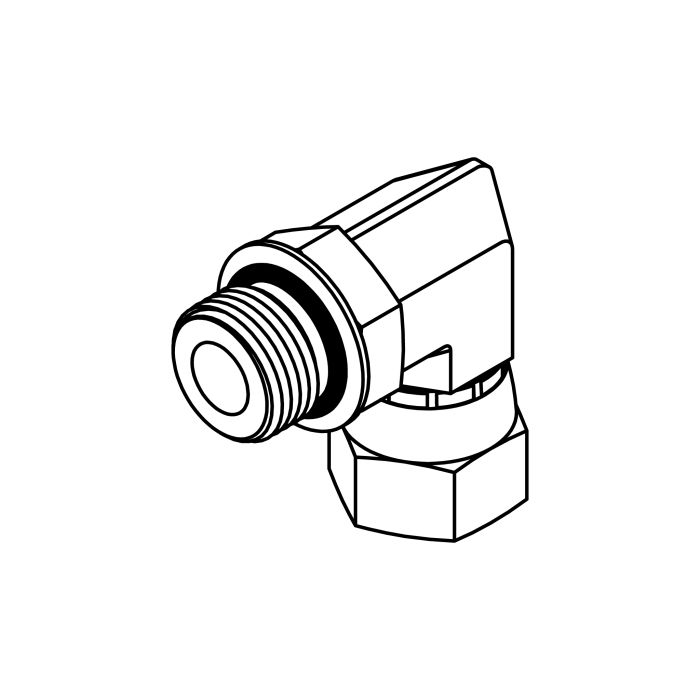

6809-12-12 O-Ring to JIC Swivel Elbow 90°

6809-12-12 O-Ring to JIC Swivel Elbow 90°

Steel hydraulic 90° swivel elbow designed to connect a 1 1/16-12 Male O-Ring Boss (ORB) (-12) port to a 1 1/16-12 Female JIC (-12) swivel connection. This fitting provides a right-angle transition between ORB sealing systems and JIC 37° flare connections, while the swivel design allows easy alignment during installation without twisting the hose or rigid line.

Specifications

Material: Steel
Shape: 90-degree elbow
Thread 1 Type: Male O-Ring
Thread 1 Nominal Size: 12
Thread 1: 1 1/16-12
Thread 2 Type: Female JIC Swivel
Thread 2 Nominal Size: 12
Thread 2: 1 1/16-12
