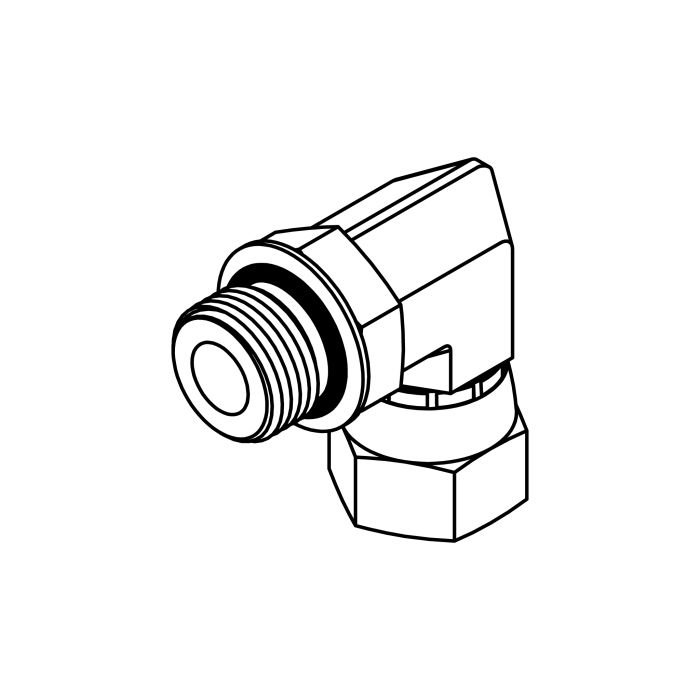

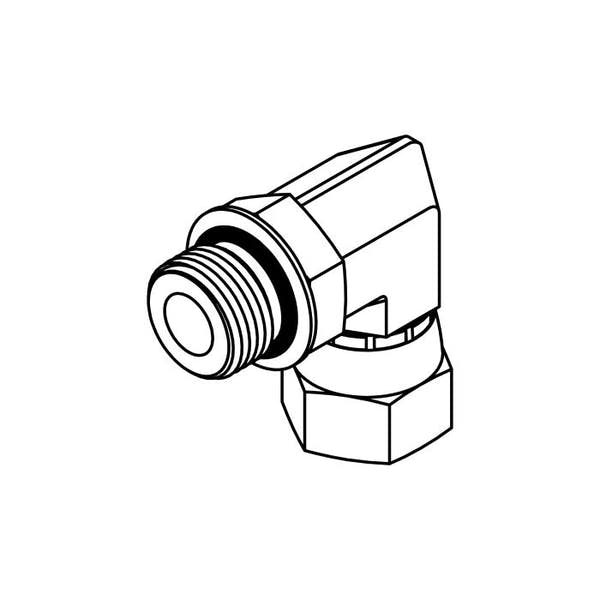

The 6809 ORB to JIC Swivel Elbow 90° is designed to connect a Male SAE O-Ring Boss (ORB) port to a Female 37° JIC swivel connection while changing hydraulic flow direction by 90 degrees. This combination provides a practical solution when hydraulic equipment uses ORB ports but the connected hose assembly requires a JIC connection.
The Female JIC swivel adds installation flexibility by allowing the hose connection to be aligned before final tightening. This can help simplify hose routing and reduce unnecessary strain on the connected assembly. Gear House Hydraulics lists the 6809 in multiple sizes for hydraulic applications.
90° Routing With Swivel Flexibility
The 6809 is built around two useful features: a 90° elbow configuration and a Female JIC swivel connection.
The 90° body changes the direction of the hydraulic line, while the swivel connection allows easier positioning of the hose during installation.
This makes the fitting especially useful where:
- Hydraulic ports are positioned close to equipment walls
- Hose routing requires a controlled 90° turn
- Straight fittings would create unnecessary bends
- The hose needs to be aligned before final tightening
- Installation space is restricted
- ORB and JIC connection types need to work together
Male ORB x Female JIC Swivel Connection
The 6809 combines two different hydraulic connection styles:
- Male SAE O-Ring Boss (ORB)
- Female 37° JIC swivel
The ORB end connects to a compatible SAE ORB port using an O-ring sealing arrangement. The opposite end accepts a compatible Female JIC swivel hose or fitting using the 37° flare connection.
This makes the 6809 useful for transitioning between ORB-equipped hydraulic components and JIC hose assemblies.
Why the JIC Swivel Matters
A fixed JIC connection can limit the final hose orientation. The swivel design gives the installer additional freedom to position the hose connection correctly.
This can make a difference when working around:
- Hydraulic cylinders
- Pumps
- Valve bodies
- Manifolds
- Machinery frames
- Compact equipment compartments
Proper alignment can also help avoid forcing a hose into an unsuitable direction during installation.
Steel Construction for Hydraulic Service
The Gear House Hydraulics collection identifies the 6809 as a steel hydraulic fitting.
Comparable manufacturer specifications for the 6809 identify forged carbon steel construction, trivalent zinc plating, and NBR (Buna-N) O-ring material, with Viton available upon request.
This combination is commonly used for hydraulic equipment where fitting strength, corrosion resistance, and reliable connection performance are important.
Key Features
- Male ORB x Female JIC swivel configuration
- 90° elbow design
- SAE O-Ring Boss connection
- 37° JIC female swivel connection
- Easier hose alignment
- Steel construction
- Forged construction
- Corrosion-resistant finish
- Suitable for high-pressure hydraulic systems
- Multiple size options
- Compact hydraulic routing solution
Selecting the Right 6809
Before purchasing, confirm the connection requirements on both ends.
ORB Size:
Match the Male ORB connection to the hydraulic component or port.
JIC Size:
Verify the Female JIC swivel size matches the hose or mating fitting.
Angle:
The 6809 provides a 90° directional change.
Swivel Requirement:
Confirm that the Female JIC swivel configuration suits your hose routing requirements.
System Requirements:
Check operating pressure, temperature, hydraulic fluid compatibility, and the ratings of the complete assembly.
Gear House Hydraulics 6809 Swivel Elbows
Gear House Hydraulics offers the 6809 series for hydraulic installations that need a dependable transition between Male ORB and Female JIC swivel connections.
The combination of 90° routing, ORB sealing, and JIC swivel flexibility makes the 6809 a practical choice for hydraulic systems where connection orientation and hose positioning matter.
Whether used on mobile equipment, construction machinery, agricultural systems, or industrial hydraulic assemblies, the correct elbow can make hose routing significantly easier.
Order 6809 ORB to JIC Swivel Elbows
When your hydraulic system requires a 90° Male ORB to Female JIC swivel connection, the 6809 provides a compact solution for directional routing and easier hose alignment.
Select the correct size for your equipment and verify the complete hydraulic system requirements before installation.
Frequently Asked Questions
What is a 6809 ORB to JIC swivel elbow?
The 6809 is a 90° hydraulic elbow with a Male SAE ORB connection and Female 37° JIC swivel connection.
What connections does the 6809 have?
It connects a Male ORB port to a Female JIC swivel connection.
What angle is the 6809?
The 6809 is a 90-degree elbow, designed to change hydraulic line direction while maintaining a compact connection.
Does the JIC side swivel?
Yes. The Female JIC connection is a swivel configuration, allowing easier alignment during installation.
What is the purpose of the ORB side?
The Male ORB end connects to a compatible SAE O-Ring Boss port and uses an O-ring for sealing.
What material is the 6809 made from?
Gear House Hydraulics lists the fitting as steel. Comparable manufacturer specifications identify forged carbon steel construction with trivalent zinc plating.
What sizes are available?
Gear House currently lists 1/4", 3/8", 1/2", 3/4", and 1" configurations, while the broader 6809 range also includes reducing sizes.
Where are 6809 elbows used?
They are suitable for hydraulic hose assemblies, pumps, valves, cylinders, mobile equipment, construction machinery, agricultural equipment, and industrial hydraulic systems.
Why choose a swivel JIC connection?
The swivel allows the hose connection to be aligned more easily during installation, which can be especially helpful when routing hydraulic hoses around equipment or through limited spaces.
Is the 6809 suitable for high-pressure hydraulic systems?
The Gear House collection identifies the 6809 for high-pressure hydraulic applications. Always verify the pressure rating of the exact fitting size and complete hydraulic assembly before use.
