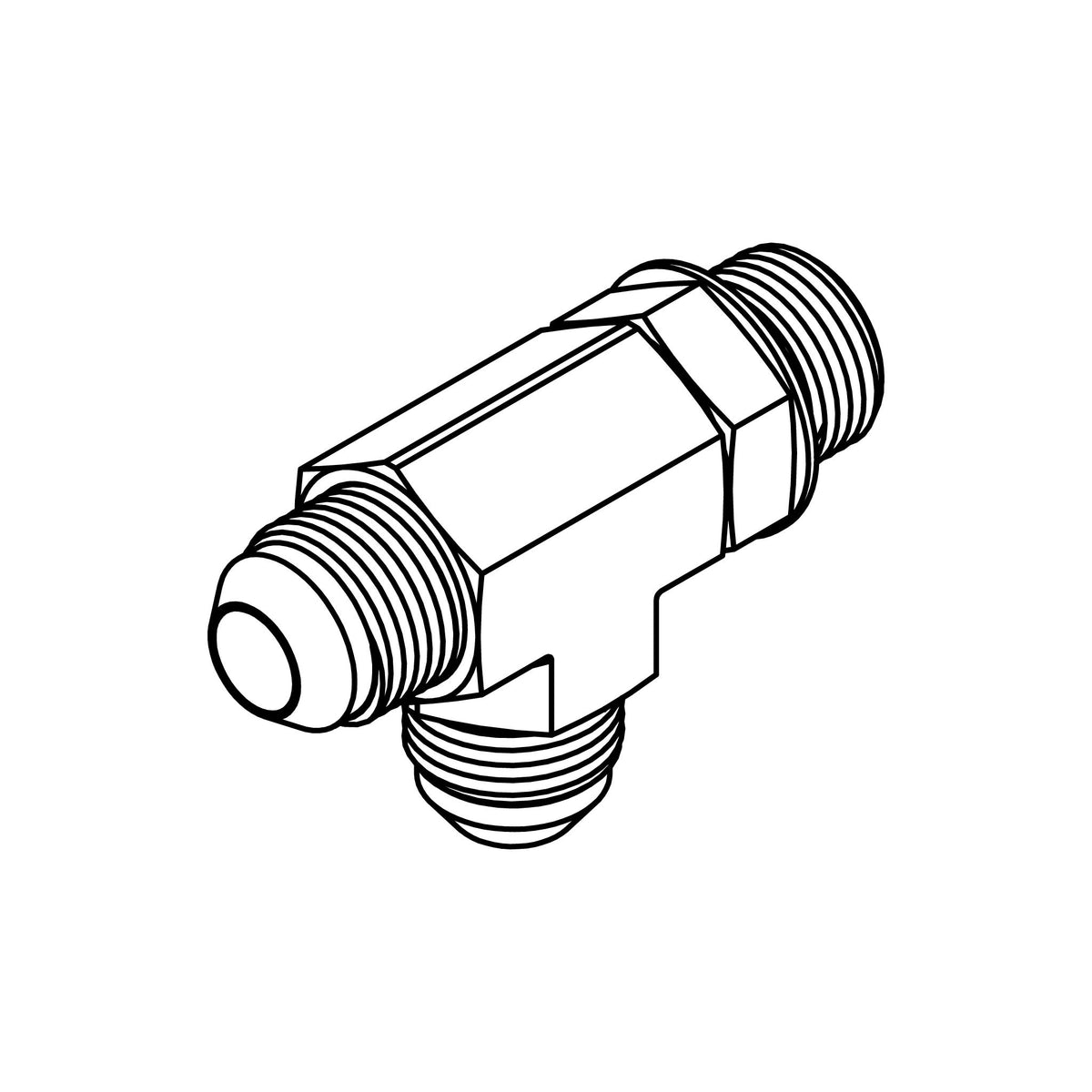

6804-04-04-06 JIC to O-Ring Run Tee

6804-04-04-06 JIC to O-Ring Run Tee

Steel hydraulic run tee designed to connect two 7/16-20 Male JIC (-04) ports with a 9/16-18 Male JIC (-06) run/branch configuration and a 7/16-20 Male O-Ring (-04) sealing port. It provides a straight-through flow path with an additional perpendicular branch, enabling flexible hydraulic routing between JIC 37° flare and O-Ring Boss sealing systems.

Specifications

Material: Steel
Shape: Tee (Run Tee)
Thread 1 Type: Male JIC
Thread 1 Nominal Size: 04
Thread 1: 7/16-20
Compliance: MS 51530, SAE 070428
Thread 2 Type: Male O-Ring
Thread 2 Nominal Size: 04
Thread 2: 7/16-20
Thread 3 Type: Male JIC
Thread 3 Nominal Size: 06
Thread 3: 9/16-18
