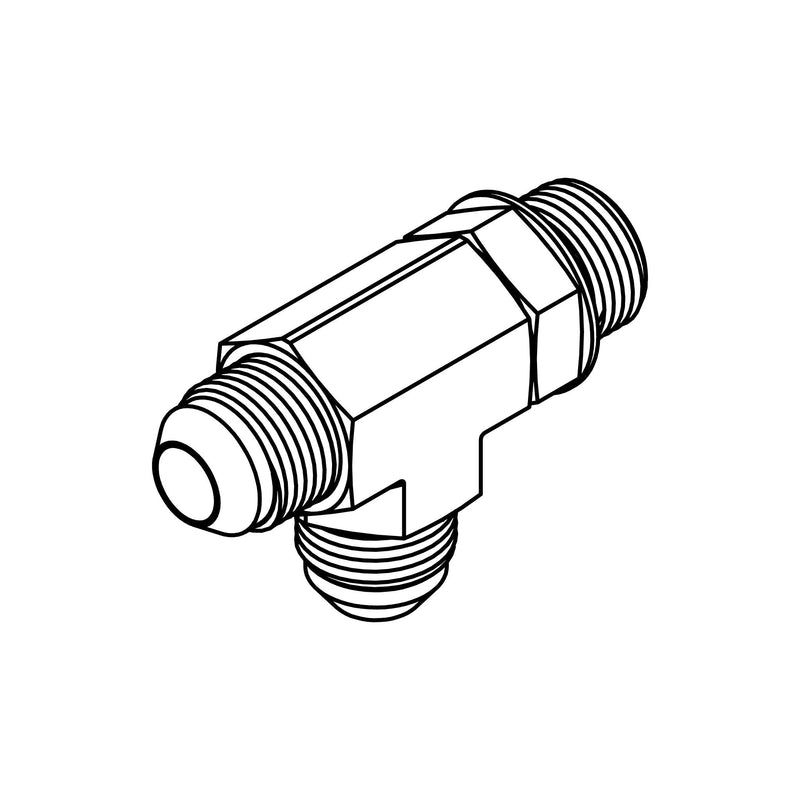

6804 JIC to ORB Run Tee | Male JIC x Male ORB x Male JIC

The 6804 JIC to ORB Run Tee is designed for hydraulic systems that need to maintain the mainline connection while adding a third port for another hydraulic component. Its Male JIC x Male ORB x Male JIC configuration provides a practical way to integrate an ORB connection into an existing JIC hydraulic circuit.

Unlike a branch tee designed primarily around diverting flow to a separate branch, the 6804 run tee keeps the two JIC connections aligned through the main run while providing an additional ORB connection. This makes it useful for hydraulic circuits where continuous mainline routing and an extra connection are both required.

Keep the Mainline Connected

The main advantage of the 6804 is its run tee configuration.

The two Male JIC connections form the primary flow path, while the Male ORB connection provides an additional connection point. This arrangement can be useful for integrating gauges, valves, hydraulic components, or another fluid line into a system without completely changing the main routing.

For equipment with limited installation space, combining three connection points into one fitting can also help keep the hydraulic layout more organized.

Male JIC x Male ORB x Male JIC

The 6804 provides three connection points:

• Male 37° JIC
• Male SAE O-Ring Boss (ORB)
• Male 37° JIC

The JIC connections use 37° SAE flare sealing, while the ORB connection uses an O-ring sealing system. This combination allows JIC hose or tube assemblies to connect through the run while providing an ORB port for another hydraulic component.

Why Use a Run Tee?

A hydraulic run tee is useful when the main line needs to continue while another connection is added along the same circuit.

The 6804 can help when you need to:

• Maintain straight-through hydraulic routing
• Add an ORB connection to a JIC circuit
• Connect multiple hydraulic lines at one location
• Reduce the number of separate adapters
• Keep equipment plumbing more compact
• Improve hydraulic component positioning

This makes the fitting especially useful in systems where space, routing, and connection accessibility all matter.

Designed for High-Pressure Hydraulic Applications

The 6804 collection is designed for high-pressure hydraulic and fluid-transfer applications. The combination of JIC flare and ORB sealing provides two established connection methods within a single fitting.

Always match the selected fitting size and pressure capability to the complete hydraulic assembly and operating conditions.

Key Features

• Male JIC x Male ORB x Male JIC configuration
• Run tee design
• 37° JIC SAE flare connections
• SAE O-Ring Boss connection
• Continuous mainline connection
• Additional ORB connection point
• Compact three-port configuration
• Designed for high-pressure hydraulic systems
• Multiple size combinations
• Suitable for industrial and mobile hydraulic equipment

JIC Flare and ORB Sealing

The two JIC ends use 37° flare connections, making them suitable for compatible JIC hose and tube assemblies.

The ORB side uses an O-ring sealing arrangement designed for connection to a compatible ORB fittings.

Before installation, confirm the correct size and thread configuration. Inspect the sealing surfaces and O-ring condition, and follow the manufacturer's recommended installation procedure.

When a 6804 Run Tee Makes Sense

The 6804 is a strong choice when the hydraulic layout requires the main connection to continue while adding another port.

It can be particularly useful when:

• A hydraulic line needs an additional connection point
• An ORB component must connect into a JIC line
• The mainline needs to remain straight
• Installation space is limited
• Multiple adapters would make routing unnecessarily complicated
• A compact tee configuration is preferred

Selecting the Correct 6804

Before ordering, check all three connection requirements.

JIC Run Size:
Confirm the first Male JIC size.

ORB Branch Size:
Match the Male ORB connection to the hydraulic component or port.

JIC Outlet Size:
Verify the second Male JIC size for the continuing hydraulic line.

Pressure Requirement:
Make sure the selected size and complete hydraulic assembly are suitable for the system's operating pressure.

Gear House Hydraulics 6804 Run Tees

Gear House Hydraulics offers the 6804 series in a broad selection of sizes for hydraulic systems that need dependable three-way routing.

The combination of two Male JIC connections and one Male ORB connection makes this fitting especially useful when a hydraulic circuit needs to continue through the fitting while adding another connection point.

Instead of combining several adapters to create the same arrangement, the 6804 provides the run tee configuration in one compact hydraulic fitting.

Order 6804 JIC to ORB Run Tee Fittings

When you need to keep the main hydraulic line connected while adding an ORB port, the 6804 JIC to ORB Run Tee provides a practical solution.

Choose the appropriate size combination for your equipment and verify the complete system requirements before installation.

Frequently Asked Questions

What is a 6804 JIC to ORB Run Tee?

The 6804 is a hydraulic run tee with Male JIC x Male ORB x Male JIC connections, designed to maintain the mainline while providing an additional connection point.

What is the difference between a run tee and a branch tee?

A run tee keeps two connections aligned through the primary flow path while providing another connection at the tee. The 6804 is specifically designed around this configuration.

What connections does the 6804 have?

It has two Male 37° JIC connections and one Male SAE O-Ring Boss connection.

Does the 6804 use JIC flare sealing?

Yes. The two JIC connections use 37° SAE flare connections.

Does the 6804 have an ORB connection?

Yes. The third connection is a Male SAE O-Ring Boss (ORB) port.

What sizes are available?

The 6804 collection includes numerous equal and reducing combinations, ranging from smaller 04 configurations through 24 configurations in the currently listed products.

Where are 6804 run tees used?

They can be used in hydraulic hose assemblies, pumps, valves, cylinders, manifolds, agricultural equipment, construction machinery, mobile hydraulics, and industrial fluid-power systems.

Is the 6804 suitable for high-pressure hydraulic systems?

Yes. The collection identifies the 6804 for high-pressure hydraulic and fluid-transfer applications. The actual pressure capability should always be confirmed for the selected size and complete hydraulic assembly.
