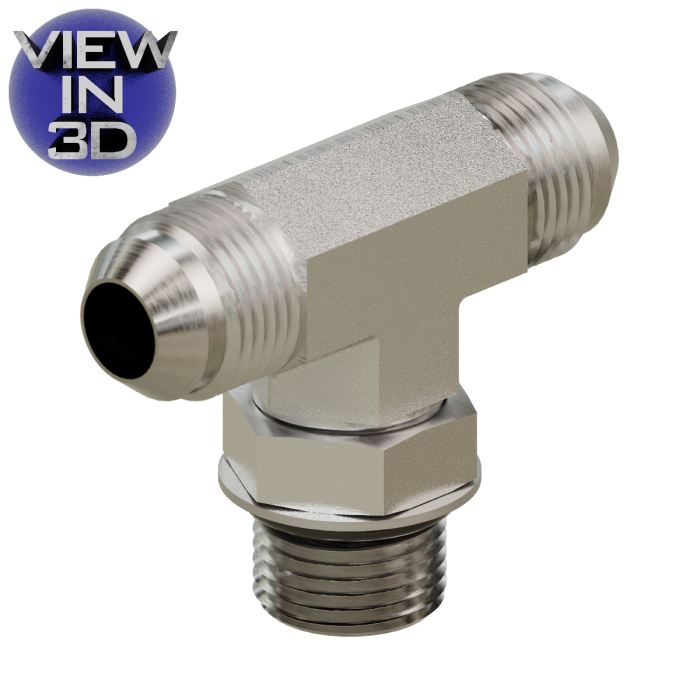

6803-06-06-08 JIC to O-Ring Branch Tee

6803-06-06-08 JIC to O-Ring Branch Tee

Steel hydraulic branch tee designed to connect two 9/16-18 Male JIC (-06) ports with a 3/4-16 Male O-Ring (-08) branch port. It provides a reliable 3-way connection between JIC 37° flare and O-Ring Boss sealing systems, ensuring secure, leak-free performance in hydraulic applications.

Specifications

Material: Steel
Shape: Tee
Thread 1 Type: Male JIC
Thread 1 Nominal Size: 06
Thread 1: 9/16-18
Compliance: MS 51529, SAE 070429
Thread 2 Type: Male JIC
Thread 2 Nominal Size: 06
Thread 2: 9/16-18
Thread 3 Type: Male O-Ring
Thread 3 Nominal Size: 08
Thread 3: 3/4-16
