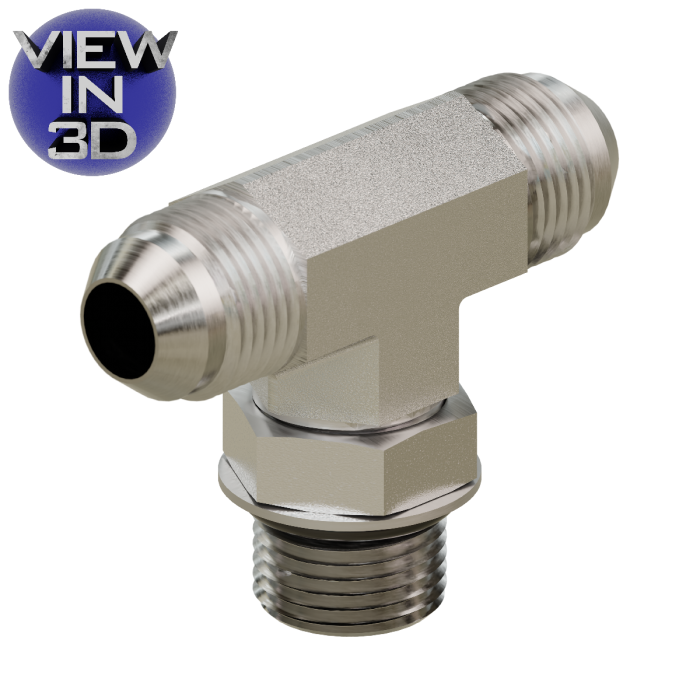

6803 JIC to ORB Branch Tee | Male JIC x Male JIC x Male ORB

The 6803 JIC to ORB Branch Tee is designed for hydraulic systems that need to add a branch connection while maintaining a practical fluid-routing layout. Featuring two Male 37° JIC connections and one Male SAE O-Ring Boss (ORB) connection, this branch tee allows multiple hydraulic lines to connect at a single point.

The three-port configuration makes the 6803 useful for hydraulic hose assemblies, pumps, valves, cylinders, agricultural equipment, construction machinery, and industrial fluid-power systems.

Branch Tee Design for Hydraulic Fluid Distribution

Unlike a straight adapter, the 6803 provides an additional outlet for connecting another hydraulic line.

This makes it useful when fluid needs to be distributed from one section of a hydraulic circuit to another without building the connection from several separate fittings.

The branch tee configuration can help create a more organized hydraulic layout while reducing unnecessary adapters and connection points.

Male JIC x Male JIC x Male ORB

The 6803 combines three hydraulic connection points:

• Male 37° JIC
• Male 37° JIC
• Male SAE O-Ring Boss (ORB)

The JIC connections use 37° SAE flare sealing, while the ORB connection uses an O-ring sealing arrangement. This combination allows JIC hose assemblies and ORB hydraulic components to be connected within the same branch connection.

Built for Demanding Hydraulic Systems

The 6803 is designed for high-pressure hydraulic applications where reliable fluid routing and secure connections are important. Its compact tee configuration provides three connection points without requiring multiple individual adapters.

This makes the fitting especially useful in systems where equipment layout, hose positioning, and available installation space need to be considered together.

Key Features

• Male JIC x Male JIC x Male ORB configuration
• 37° JIC SAE flare connections
• SAE O-Ring Boss connection
• Branch tee configuration
• Three hydraulic connection points
• Designed for fluid distribution
• Suitable for high-pressure applications
• Available in multiple sizes
• Compact hydraulic installation design
• Suitable for industrial and mobile hydraulic systems

Simplify Hydraulic Line Layouts

Hydraulic systems often require multiple connections within a limited installation area. Adding separate adapters and tees can increase the number of connection points and make routing more complicated.

The 6803 combines the required connection points into one fitting.

With two JIC ports and one ORB port, it provides a practical way to integrate different hydraulic connection types into one branch location.

JIC Flare and ORB Sealing

The two JIC ports use 37° flare connections, a widely used connection style for hydraulic hose and tube assemblies.

The ORB port uses an O-ring sealing method, providing a different sealing approach at the hydraulic component connection.

Before installation, make sure all three connection sizes match the intended components. Inspect sealing surfaces and O-rings before assembly and follow the fitting manufacturer's recommended installation procedure.

Why Choose a Branch Tee Instead of Multiple Adapters?

A branch tee can make a hydraulic installation simpler when three connection points are required in one location.

The 6803 can help:

• Add a branch line to an existing hydraulic circuit
• Connect JIC hose assemblies with an ORB component
• Reduce unnecessary fitting combinations
• Keep hydraulic routing more organized
• Create a compact multi-line connection
• Simplify hydraulic component installation

Selecting the Right 6803 Size

Before ordering your 6803, verify all three connection sizes.

First JIC connection:
Confirm the size of the first Male JIC connection.

Second JIC connection:
Match the second Male JIC connection to the required hose or tube assembly.

ORB connection:
Verify the Male ORB size matches the hydraulic port.

System requirements:
Check pressure, temperature, fluid compatibility, and installation requirements for the complete hydraulic system.

Gear House Hydraulics 6803 Branch Tees

Gear House Hydraulics offers the 6803 series in multiple size combinations for hydraulic systems requiring a dependable three-way connection.

The combination of two Male JIC connections and one Male ORB connection makes the 6803 a practical choice for hydraulic circuits that need both JIC hose connections and an ORB component connection at the same branch point.

Whether you're working on mobile equipment, agricultural machinery, construction equipment, or industrial hydraulic systems, selecting the correct tee configuration can make installation and routing much easier.

Order 6803 JIC to ORB Branch Tee Fittings

When your hydraulic system requires an additional branch connection, the 6803 JIC to ORB Branch Tee provides three connection points in one compact fitting.

Choose the required size combination and make sure all three connections match your hydraulic equipment before installation.

Frequently Asked Questions

What is a 6803 JIC to ORB Branch Tee?

The 6803 is a hydraulic branch tee with two Male JIC connections and one Male ORB connection, designed for fluid distribution and multiple hydraulic line connections.

What connections does the 6803 have?

It uses a Male JIC x Male JIC x Male ORB configuration.

What is the purpose of the branch tee?

The branch tee provides an additional connection point so hydraulic fluid can be routed between multiple lines from a single fitting location.

Does the 6803 use JIC flare sealing?

Yes. The two JIC connections use 37° JIC SAE flare connections.

Does the 6803 have an ORB connection?

Yes. The third connection is a Male SAE O-Ring Boss (ORB) connection.

What sizes are available?

The 6803 collection is available in numerous combinations, including sizes from smaller 04 configurations through larger 24 configurations, along with multiple reducing combinations.

Where are 6803 branch tees used?

They are commonly used in hydraulic hose assemblies, pumps, valves, cylinders, agricultural machinery, construction equipment, and industrial fluid-power systems.

Is the 6803 suitable for high-pressure hydraulic systems?

Yes. The Gear House Hydraulics collection identifies the 6803 as suitable for high-pressure applications. Always verify the pressure capability of the specific size and complete hydraulic assembly before use.
