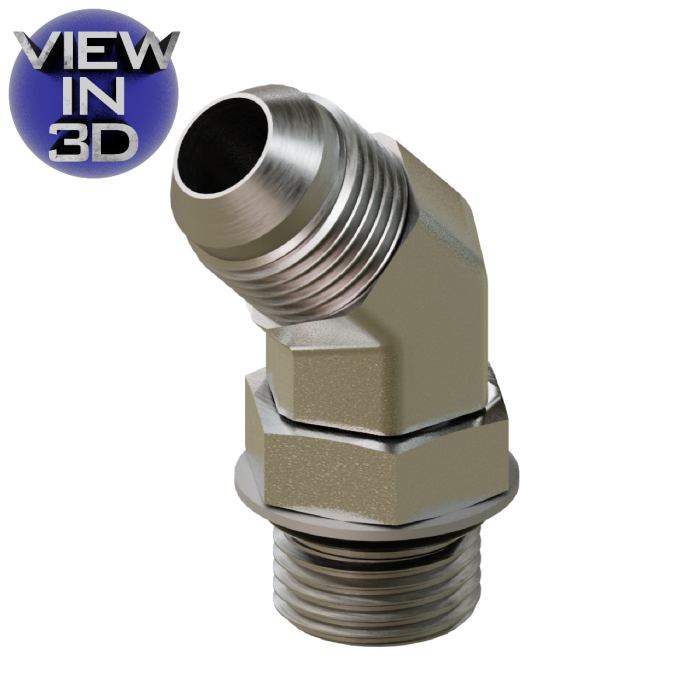

6802-06-06 JIC to O-Ring Elbow 45°

6802-06-06 JIC to O-Ring Elbow 45°

Steel hydraulic 45° elbow designed to connect a 9/16-18 Male JIC (-06) end with a 9/16-18 Male O-Ring (-06) end. It provides a compact and reliable transition between JIC 37° flare and O-Ring Boss sealing systems, ensuring secure, leak-free performance in low to medium-pressure hydraulic applications.

Specifications

Material: Steel
Shape: 45 degree elbow
Thread 1 Type: Male JIC
Thread 1 Nominal Size: 06
Thread 1: 9/16-18
Compliance: MS 51528, SAE 070320
Thread 2 Type: Male O-Ring
Thread 2 Nominal Size: 06
Thread 2: 9/16-18
