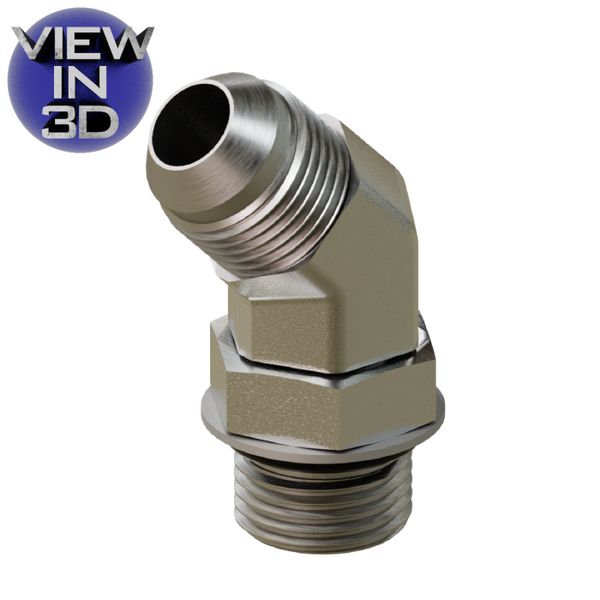

6802 JIC to ORB 45° Elbow | Male JIC x Male O-Ring Boss
Keep hydraulic lines moving cleanly with 6802 JIC to ORB 45° elbows. Steel construction, secure JIC and ORB connections, and a controlled 45° turn make them ideal for compact, high-pressure hydraulic routing.
Filter Products
Material
Size
The 6802 JIC to ORB 45° Elbow provides a practical connection between 37° Male JIC and Male SAE O-Ring Boss (ORB) ports while changing the direction of hydraulic flow by 45 degrees. It is designed for installations where a straight adapter does not provide the routing angle needed for a clean hydraulic assembly.
By combining two common hydraulic connection types with a 45° elbow configuration, the 6802 helps position hoses and tubes more effectively around pumps, valves, cylinders, manifolds, and other hydraulic components.
45° Elbow for Controlled Hydraulic Routing
A 45° fitting provides a gradual directional change between connected hydraulic components. This can be useful when the available installation space does not allow a straight connection but a full 90° turn would be more aggressive than necessary.
The 6802 45° configuration helps create a more organized routing path while keeping the connection compact.
It is particularly useful for:
- Routing hydraulic hoses around equipment
- Working around limited installation space
- Positioning connections away from obstructions
- Reducing unnecessary hose bending
- Creating cleaner hydraulic assemblies
Male JIC x Male ORB Connection
The 6802 features a Male JIC x Male ORB configuration.
The JIC side uses a 37° flare sealing connection, while the ORB side uses an SAE O-Ring Boss sealing connection. This allows the fitting to directly connect JIC and ORB components without requiring an additional transition adapter.
Connection Breakdown
- Connection 1: Male 37° JIC
- Connection 2: Male SAE ORB
- Configuration: 45° elbow
- Application: Hydraulic fluid transfer and routing
- Material: Steel
Steel Construction for Demanding Hydraulic Service
The 6802 collection is listed with steel construction, providing a strong fitting option for hydraulic equipment operating in demanding environments.
For hydraulic assemblies exposed to pressure, vibration, equipment movement, and frequent operation, selecting the correct fitting material and size is essential for maintaining a dependable connection.
Key Features
- Male JIC x Male ORB connection
- 37° JIC flare connection
- SAE O-Ring Boss connection
- 45° elbow configuration
- Steel construction
- Designed for high-pressure applications
- Multiple JIC and ORB size combinations
- Helps improve hydraulic line positioning
- Suitable for hydraulic fluid-transfer systems
- Practical choice for compact equipment layouts
Improve Hose Positioning With a 45° Connection
Hydraulic routing is not always a straight-line job. Ports may sit close to frames, machine components, cylinders, or other fittings.
A 45° elbow can provide the extra angle needed to guide a hose toward its destination without making the assembly unnecessarily complicated.
The 6802 can help create:
- More practical hose routing
- Better clearance around components
- Reduced need for additional adapters
- Cleaner equipment layouts
- More flexible installation options
6802 vs. a Straight Connection
A straight JIC-to-ORB adapter is useful when both connection points are already aligned. The 6802 is a better fit when the hydraulic line needs to change direction.
Its 45° angle provides an intermediate routing option—less abrupt than a 90° elbow while offering more directional flexibility than a straight adapter.
JIC and ORB Sealing
The two ends of the fitting use different connection methods.
The 37° JIC side is designed for a flare connection, while the ORB side uses an O-ring sealing arrangement.
Before installation, make sure the selected fitting size matches the mating components. Inspect sealing surfaces and the O-ring condition where applicable, and follow the equipment manufacturer's recommended installation procedure.
Selecting the Right 6802 Fitting
Before purchasing, check the following:
JIC Size:
Confirm the Male JIC size matches the corresponding hydraulic connection.
ORB Size:
Verify the Male ORB size matches the port on the hydraulic component.
Angle:
The 6802 provides a 45° directional change.
Material:
The collection is listed with steel construction.
System Requirements:
Confirm that the selected fitting is suitable for your pressure, temperature, fluid, and overall assembly requirements.
Why Buy 6802 JIC to ORB Elbows From Gear House Hydraulics?
Gear House Hydraulics offers the 6802 JIC to O-Ring Elbow 45° in a wide selection of sizes, making it easier to match different hydraulic connection requirements.
Instead of adding multiple fittings to achieve the required direction, the 6802 combines the JIC connection, ORB connection, and 45° routing angle into one compact hydraulic adapter.
That makes it a practical choice for hydraulic professionals working on mobile equipment, industrial machinery, agricultural systems, construction equipment, and other fluid-power applications.
Order Your 6802 JIC to ORB 45° Elbow
When you need a reliable Male JIC x Male ORB 45° hydraulic elbow, the 6802 provides the connection style and directional change required for cleaner hydraulic routing.
Select the correct size combination for your equipment and verify the complete system requirements before installation.
Frequently Asked Questions
What is a 6802 JIC to ORB elbow?
The 6802 is a 45° hydraulic elbow connecting a Male 37° JIC fitting to a Male SAE O-Ring Boss (ORB) connection.
What angle is the 6802 fitting?
The 6802 is a 45-degree elbow, designed to provide a controlled directional change in hydraulic routing.
What connections does the 6802 have?
It features a Male JIC x Male ORB connection.
Is the 6802 made from steel?
Yes. The Gear House Hydraulics collection lists steel as the material for the 6802 series.
What sizes are available?
The collection includes numerous JIC and ORB combinations, ranging from 1/8 × 1/8 through larger configurations, including 2 × 2 and 32 × 32, along with reducing sizes.
Where are 6802 elbows commonly used?
They can be used in hydraulic hose assemblies, pumps, valves, cylinders, power units, agricultural equipment, construction machinery, mobile hydraulics, and industrial fluid-power systems.
Why use a 45° JIC to ORB elbow?
A 45° elbow helps change hydraulic line direction while providing a more gradual routing angle than a 90° elbow. This can be useful where space is limited or hose positioning needs additional flexibility.
Is the 6802 suitable for high-pressure applications?
The Gear House Hydraulics collection identifies the 6802 as designed for high-pressure applications. Always verify the pressure rating of the specific size and complete hydraulic assembly before use.
