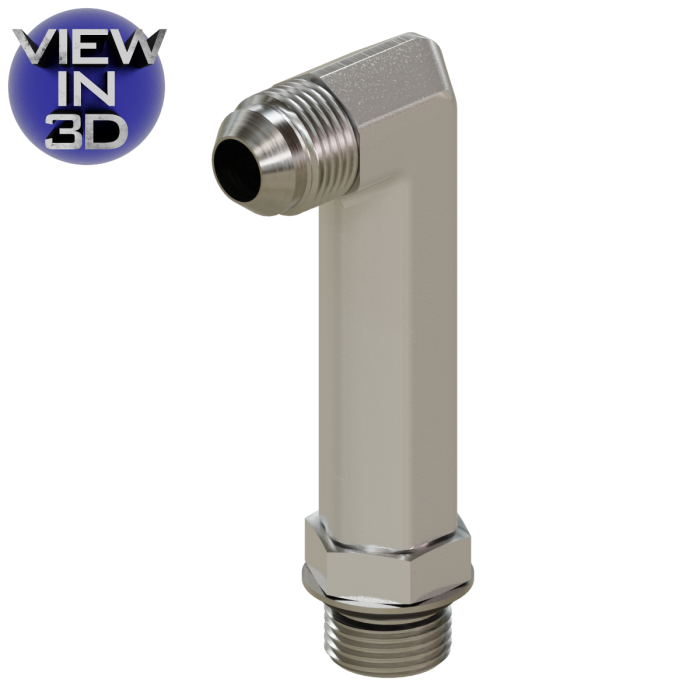

6801-LLL-06-06 JIC to O-Ring - Extra Extra Long Elbow 90°

6801-LLL-06-06 JIC to O-Ring - Extra Extra Long Elbow 90°

Steel hydraulic extra-extra-long 90° elbow designed to connect a 9/16-18 Male JIC (-06) end with a 9/16-18 Male O-Ring (-06) end. The “LLL” (extra-extra-long) body provides maximum reach and installation clearance, making it ideal for deep or highly restricted hydraulic mounting positions while ensuring a secure, leak-free transition between JIC 37° flare and O-Ring Boss sealing systems.

Specifications

Material: Steel
Shape: 90 degree elbow
Thread 1 Type: Male JIC
Thread 1 Nominal Size: 06
Thread 1: 9/16-18
Thread 2 Type: Male O-Ring
Thread 2 Nominal Size: 06
Thread 2: 9/16-18
Drop Length: 3.06
