6801-LLL JIC to O-Ring Extra-Extra-Long Elbow 90° | Hydraulic Adapter Fittings
Description

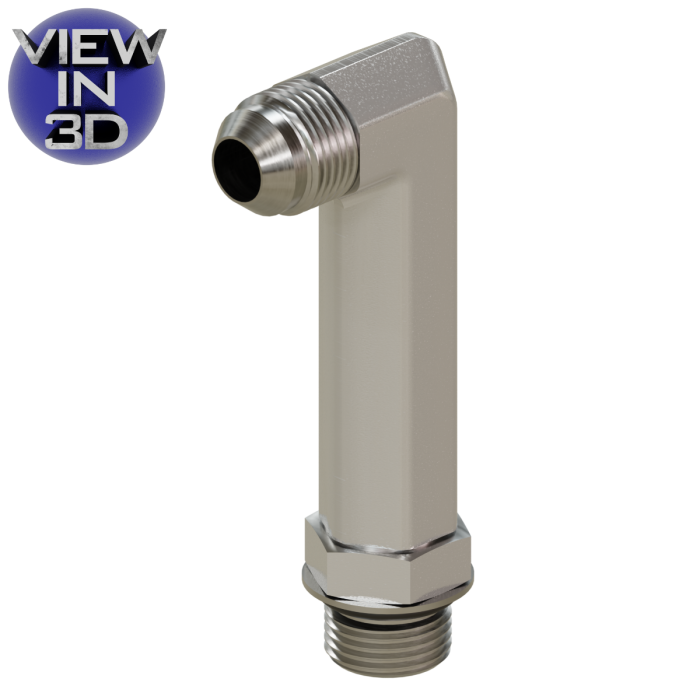

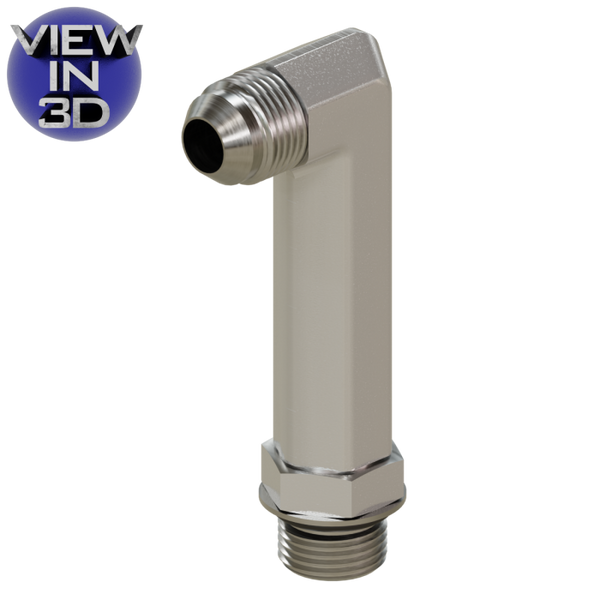

The 6801-LLL JIC to O-Ring Extra-Extra-Long Elbow 90° is a precision hydraulic adapter designed for applications requiring an extended 90° directional change between a JIC 37° flare connection and an O-Ring sealed port (ORFS/ORB). The extra-extra-long design offers additional clearance and reach, making it ideal for complex or space-limited hydraulic layouts where standard elbows may not fit.
Connection Description & Function
- End 1: JIC 37° flare connection
- End 2: O-Ring sealed port (ORB/ORFS)
- Angle: 90° elbow
- Feature: Extra-extra-long body for extended reach and smoother routing
- Designed to maintain a secure, leak-resistant transition between differing hydraulic interfaces
Applications
6801-LLL Long Elbow fittings are commonly used in:
- Machine tools and manufacturing systems
- Agricultural and earth-moving equipment
- Instrumentation and fluid control lines
- Chemical processing systems
- Industrial fluid power circuits
- Mobile hydraulic applications
This adapter is especially useful in setups where hose or tubing must clear obstructions, frames, or machinery structures while maintaining optimized fluid flow paths.
Pressure Ratings
- Working pressure: Up to 5,000 PSI
Designed for high-pressure hydraulic applications, including systems operating near or above 5000 PSI when properly sized and installed
Key Features & Benefits
- Connects JIC 37° flare to O-Ring sealed hydraulic ports
- Extra-extra-long 90° elbow design provides enhanced routing flexibility
- Helps minimize stress on hoses or tubes in complex assemblies
- Ideal for industrial, mobile, and process hydraulic systems
- Provides robust sealing under vibration and dynamic pressure
Typical Use Cases
- Routing hydraulics around obstructions inside machinery
- Connecting ORFS/ORB manifolds to JIC lines in tight spaces
- Mobile equipment where extended reach improves serviceability
- Fluid power systems needing optimized hose layouts
- Applications requiring high-pressure directional changes
This fitting is engineered for high-pressure hydraulic systems and delivers reliable sealing, mechanical strength, and ease of installation in demanding industrial and mobile applications.
