6801-16-08 JIC to O-Ring Elbow 90°

6801-16-08 JIC to O-Ring Elbow 90°

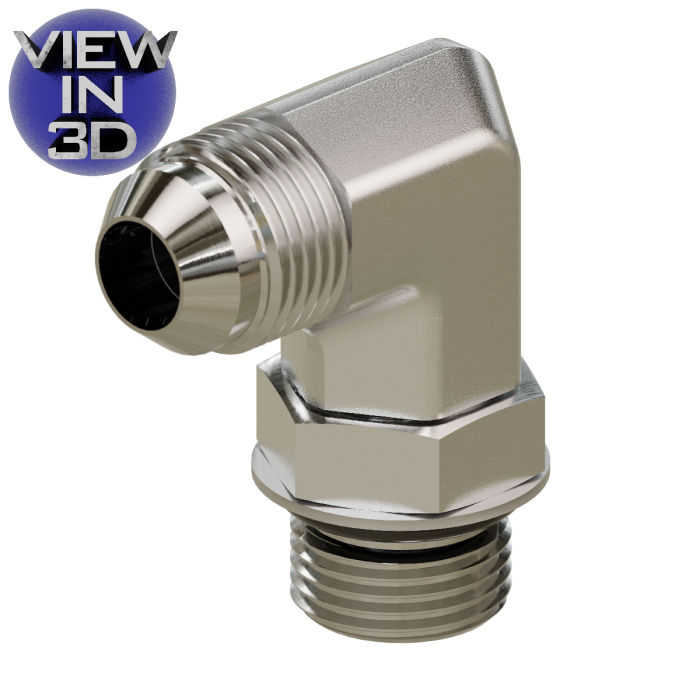

Steel hydraulic 90° elbow adapter designed to connect a 1 5/16-12 Male JIC (-16) end with a 3/4-16 Male O-Ring (-08) end. It provides a secure, leak-free transition between JIC 37° flare and O-Ring Boss (ORB) hydraulic systems, commonly used in high-pressure hydraulic applications.

Specifications

• Material: Steel
• Shape: 90 Degree Elbow
• Thread 1 Type: Male JIC
• Thread 1 Nominal Size: 16
• Thread 1: 1 5/16-12
• Compliance: MS 51527, SAE 070220
• Thread 2 Type: Male O-Ring
• Thread 2 Nominal Size: 08
• Thread 2: 3/4-16
