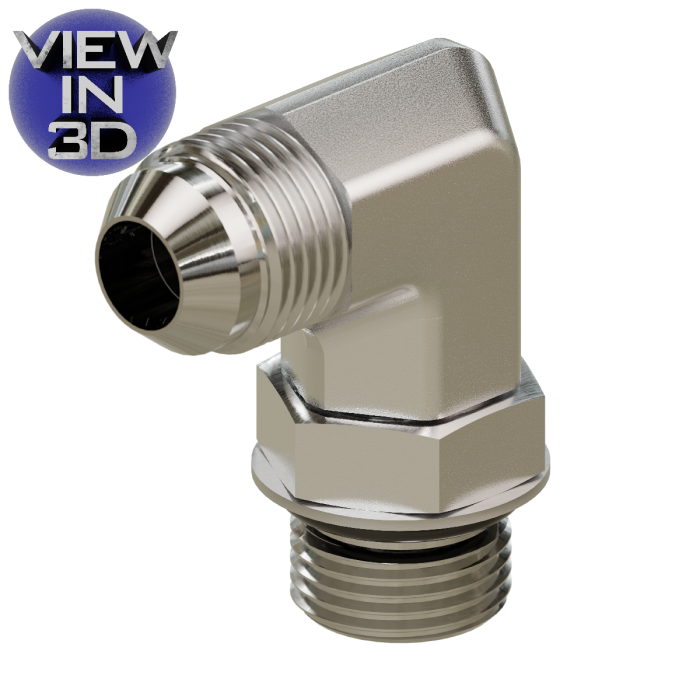

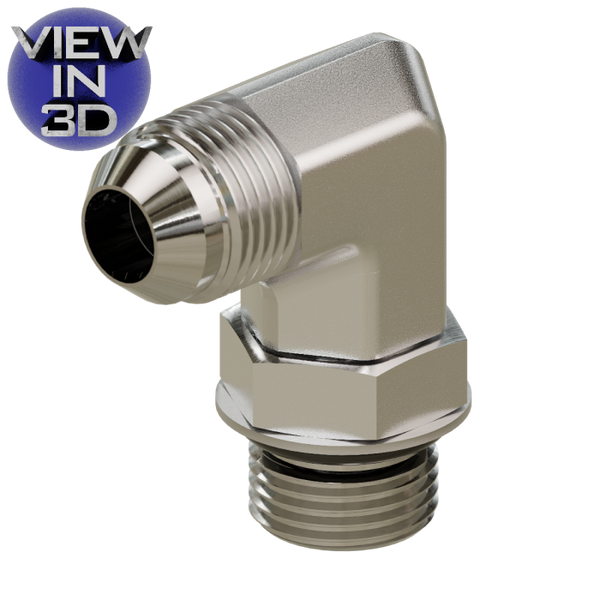

6801 JIC to ORB 90° Elbow | Male JIC x Male O-Ring Boss
Route hydraulic lines around tight spaces with 6801 JIC to ORB 90° elbows. Built from steel with secure JIC and O-Ring Boss connections, these fittings provide reliable sealing, cleaner routing, and dependable hydraulic performance.
Filter Products
Material
Size
The 6801 JIC to ORB 90° Elbow is designed to connect a Male 37° JIC connection to a Male SAE O-Ring Boss (ORB) connection while changing the hydraulic line direction by 90 degrees. This makes it a practical choice when straight adapters cannot provide the routing clearance needed around hydraulic components.
The 6801 combines two commonly used hydraulic connection styles in one compact elbow, helping simplify hose routing around pumps, valves, cylinders, manifolds, and other equipment.
90° Design for Better Hose Routing
The biggest advantage of the 6801 is its 90-degree elbow configuration.
Instead of forcing a hydraulic hose or tube into a sharp bend, the elbow provides a controlled directional change at the fitting. This can help improve routing around machinery and reduce unnecessary stress on the connected hose.
The compact 90° layout is especially useful where hydraulic ports are positioned close to frames, panels, cylinders, valves, or other equipment.
Male JIC x Male ORB Connection
The 6801 features:
- Male 37° JIC flare connection
- Male SAE O-Ring Boss (ORB) connection
- 90° elbow configuration
The JIC side uses a 37° flare sealing connection, while the ORB side uses an O-ring sealing arrangement. This allows the fitting to transition between JIC hose assemblies and ORB hydraulic ports without adding another adapter.
Steel Construction
The 6801 series is available in steel and is designed for demanding hydraulic applications. Comparable manufacturer specifications identify the standard 6801 as forged carbon steel with trivalent zinc plating, with NBR (Buna-N) O-rings and Viton available upon request.
The steel construction provides the strength required for hydraulic equipment exposed to pressure, vibration, and demanding operating conditions.
Key Features
- Male JIC × Male ORB configuration
- 37° JIC flare connection
- SAE O-Ring Boss connection
- 90° elbow design
- Steel construction
- Forged construction
- Trivalent zinc finish
- O-ring sealing on ORB side
- Multiple size combinations
- Suitable for high-pressure hydraulic systems
- Helps simplify hose routing
- Useful in compact installations
Why Use a JIC to ORB 90° Elbow?
A straight adapter works well when two connections are already aligned. But hydraulic equipment rarely gives you unlimited space.
The 6801 solves this by changing the direction of the connection by 90 degrees.
It can help when:
- The hydraulic hose needs to turn immediately
- Straight fittings create excessive hose bending
- Space around the hydraulic port is limited
- Components are mounted close to each other
- Cleaner hose routing is required
- A direct JIC-to-ORB connection is needed
Hydraulic Applications
6801 JIC to ORB elbows are suitable for a wide range of hydraulic equipment and fluid-power systems.
Typical applications include:
- Hydraulic hose assemblies
- Hydraulic cylinders
- Hydraulic pumps
- Hydraulic valves
- Hydraulic power units
- Agricultural machinery
- Construction equipment
- Mobile hydraulic equipment
- Industrial hydraulic systems
- Manifolds and hydraulic blocks
- OEM hydraulic assemblies
The Gear House collection specifically positions the 6801 for hydraulic hose assemblies, cylinders, pumps, valves, power units, agricultural machinery, construction equipment, and industrial fluid-power systems.
Compact Connection for Tight Installations
In many hydraulic systems, available space around a port is limited. A hose routed directly from a straight fitting may require a bend that puts additional strain on the hose.
A 90° elbow moves the connection direction at the fitting itself, helping create a more controlled routing path.
This can be particularly useful around:
- Hydraulic cylinders
- Valve blocks
- Pumps
- Manifolds
- Machine frames
- Control panels
- Compact mobile equipment
JIC Flare and ORB Sealing
The two connection ends perform different functions.
The 37° JIC side uses a flare connection designed for hydraulic service.
The ORB side uses an O-ring to create the sealing interface at the hydraulic port. The O-ring should be properly seated and free from cuts, contamination, or damage before installation.
Correct size matching is important because JIC and ORB dimensions should not be selected by appearance alone.
6801 Material & Finish
The standard 6801 is offered in carbon steel, with manufacturer specifications identifying forged construction and trivalent zinc plating. The standard sealing material is NBR (Buna-N), with Viton options available upon request from the referenced manufacturer.
This combination is suited to general hydraulic service where strength, connection reliability, and corrosion resistance are important.
How to Choose the Right 6801
Before ordering a 6801 elbow, confirm:
1. JIC size
Match the Male JIC side to the required female JIC connection.
2. ORB size
Confirm the Male ORB side matches the hydraulic port.
3. Direction
The 6801 provides a 90° turn. Make sure this matches your routing requirement.
4. Material
Select the appropriate material for the operating environment.
5. Pressure requirements
Verify that the selected fitting and complete hydraulic assembly meet the required operating pressure.
Frequently Asked Questions
What is a 6801 JIC to ORB elbow?
The 6801 is a 90° hydraulic elbow that connects a Male 37° JIC fitting to a Male SAE O-Ring Boss fitting.
What angle is a 6801 elbow?
The 6801 is a 90-degree elbow, designed to change hydraulic line direction at the connection.
What connections does the 6801 have?
It has a Male JIC × Male ORB configuration.
What material is the 6801 made from?
The standard 6801 is available in carbon steel, with manufacturer specifications identifying forged construction and trivalent zinc plating.
What sizes are available?
Gear House Hydraulics lists numerous JIC × ORB combinations, from smaller sizes through larger 1-1/2" and 2" configurations.
Where are 6801 elbows used?
They are used in hydraulic hose assemblies, cylinders, pumps, valves, power units, agricultural equipment, construction machinery, mobile hydraulics, and industrial fluid-power systems.
Does the 6801 use an O-ring?
Yes. The ORB side uses an O-ring sealing system. The referenced manufacturer lists NBR (Buna-N) as the standard O-ring material, with Viton available upon request.
Why use a 90° JIC to ORB elbow instead of a straight adapter?
A 90° elbow changes the routing direction at the fitting, which can help reduce hose bending and make installation easier where straight-line space is limited.
Is the 6801 suitable for high-pressure hydraulic systems?
Yes, the collection is intended for high-pressure hydraulic systems. The exact pressure capability should be verified for the selected size and complete assembly.
How do I select the correct 6801 size?
Match the Male JIC size and Male ORB size to the corresponding female connections on your hydraulic equipment, then verify the required pressure and installation clearance.
