6801-06-06 JIC to O-Ring Elbow 90°

6801-06-06 JIC to O-Ring Elbow 90°

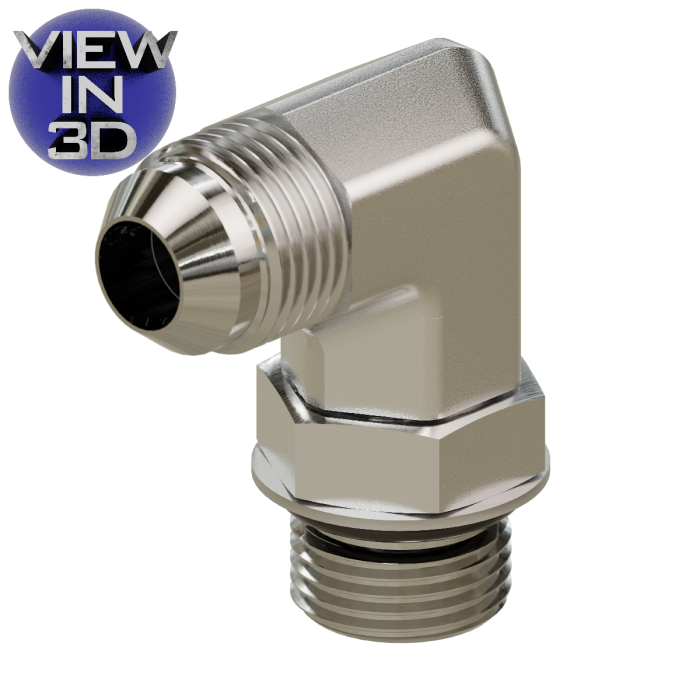

Steel hydraulic 90° elbow designed to connect a 9/16-18 Male JIC (-06) end with a 9/16-18 Male O-Ring (-06) end. It provides a compact and reliable transition between JIC 37° flare and O-Ring Boss sealing systems, ensuring leak-free performance in medium to high-pressure hydraulic applications.

Specifications

Material: Steel
Shape: 90 degree elbow
Thread 1 Type: Male JIC
Thread 1 Nominal Size: 06
Thread 1: 9/16-18
Compliance: MS 51527, SAE 070220
Thread 2 Type: Male O-Ring
Thread 2 Nominal Size: 06
Thread 2: 9/16-18
