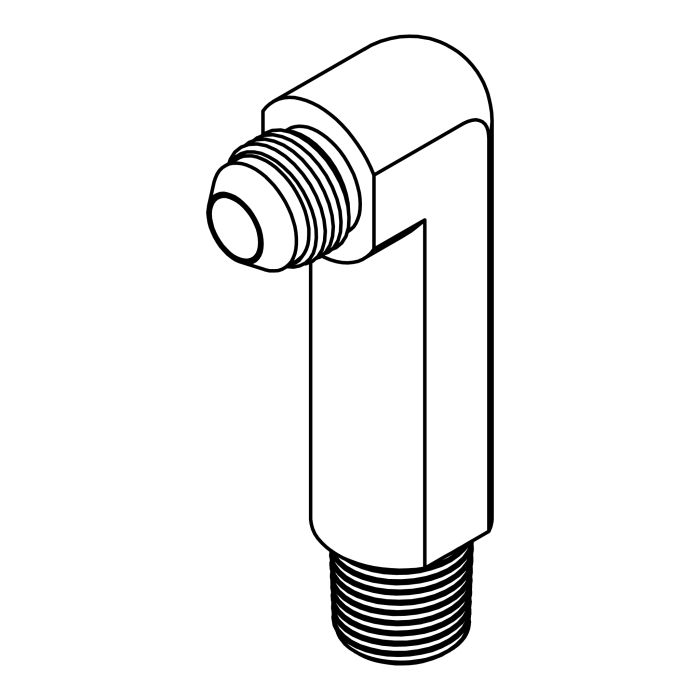

2501-LLL-06-06 JIC to Pipe - Extra Extra Long Elbow 90°
2501-LLL-06-06 JIC to Pipe Extra Extra Long 90° Elbow
Steel 90° extra-extra-long elbow fitting connecting 9/16-18 Male JIC (-06) to 3/8-18 Male Pipe (-06). Provides a secure hydraulic connection with a 3.75" drop for extended clearance in tight routing applications.
Specifications:
- Material: Steel
- Shape: 90° Elbow
- Thread 1: 9/16-18 Male JIC (-06)
- Thread 2: 3/8-18 Male Pipe (-06)
- Drop Length: 3.75"
- Compliance: SAE 071602
