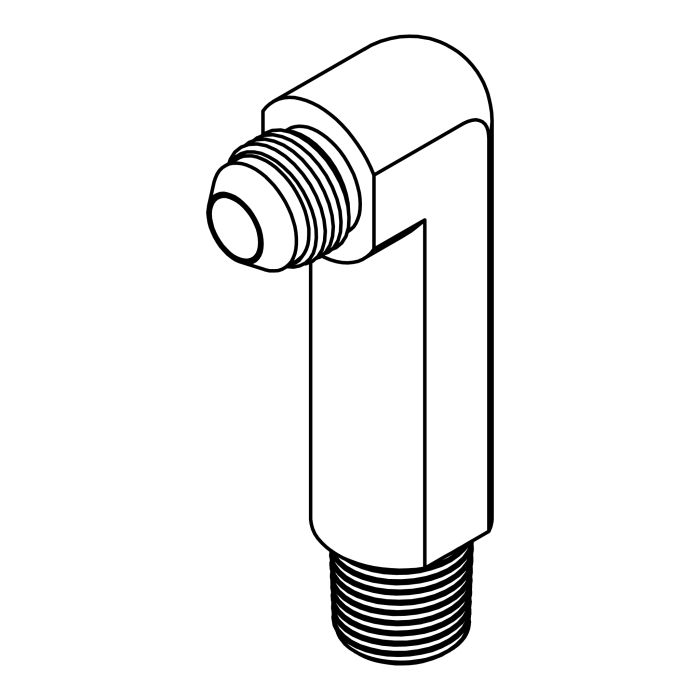

2501-LLL JIC to Pipe Extra-Extra-Long Elbow 90° | Hydraulic Adapter Fittings
Description
The 2501-LLL JIC to Pipe Extra-Extra-Long Elbow 90° series consists of extended reach, precision-machined hydraulic adapters designed to connect JIC 37° flare lines to pipe thread connections at a 90° angle with extra-extra-long body length. This configuration allows for improved clearance and routing flexibility in hydraulic systems where standard elbows cannot provide sufficient reach.
Applications
2501-LLL elbows are commonly used in:
- Machine tools and manufacturing equipment
- Agricultural and earth-moving machinery
- Instrumentation and control fluid lines
- Chemical processing systems
- Industrial hydraulic circuits
- Mobile hydraulic applications
They are ideal where additional clearance is required to route hydraulic lines around obstructions, structural frames, or cabinets without sacrificing system integrity.
Pressure Ratings
- Working pressure: Up to 5000 PSI
- Actual working pressure varies with:
- Tube/hose size
- Fitting size
- System configurations
- For applications operating at or above 5000 PSI, consult Gear House Hydraulics for compatibility and sizing recommendations
Material Specifications
Carbon Steel (standard)
- Bar stock:
- 12L14
- 1045
- Cold formed:
- 1010
Stainless Steel (optional)
- Type 316
The 2501-LLL elbows are manufactured in either carbon steel or stainless steel, depending on the selected variant and application requirements.
Plating & Finish
- Clear Zinc Trivalent plating
- Passivated finish enhances resistance to corrosion
- Suitable for industrial and outdoor environments
These fittings are engineered to deliver reliable sealing and mechanical performance in demanding industrial, mobile, and high-pressure environments.
