2501-LLL-04-02 JIC to Pipe - Extra Extra Long Elbow 90°
2501-LLL-04-02 JIC to Pipe Extra Extra Long 90° Elbow

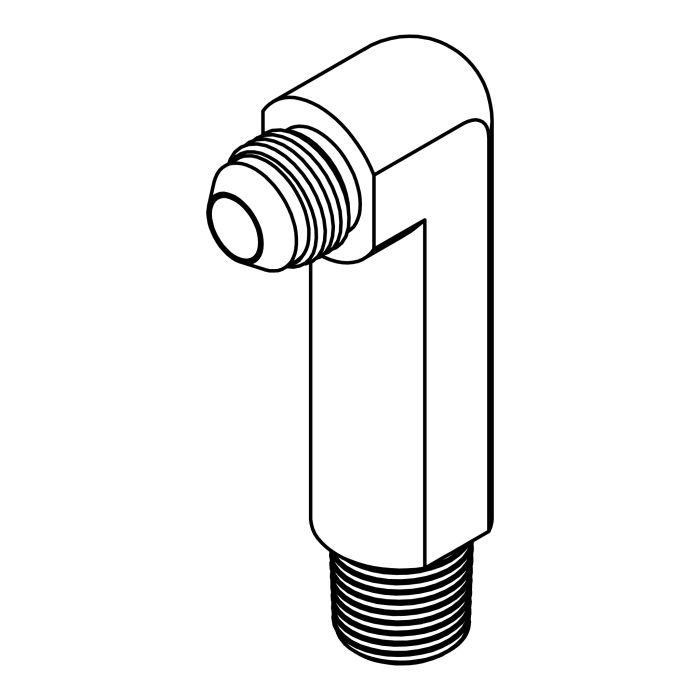

Steel 90° extra-extra-long elbow fitting connecting 7/16-20 Male JIC (-04) to 1/8-27 Male Pipe (-02). Provides a secure hydraulic connection with a 2.31" drop for extended installation clearance in tight spaces.
Specifications:
- Material: Steel
- Shape: 90° Elbow
- Thread 1: 7/16-20 Male JIC (-04)
- Thread 2: 1/8-27 Male Pipe (-02)
- Drop Length: 2.31"
- Compliance: SAE 071602
