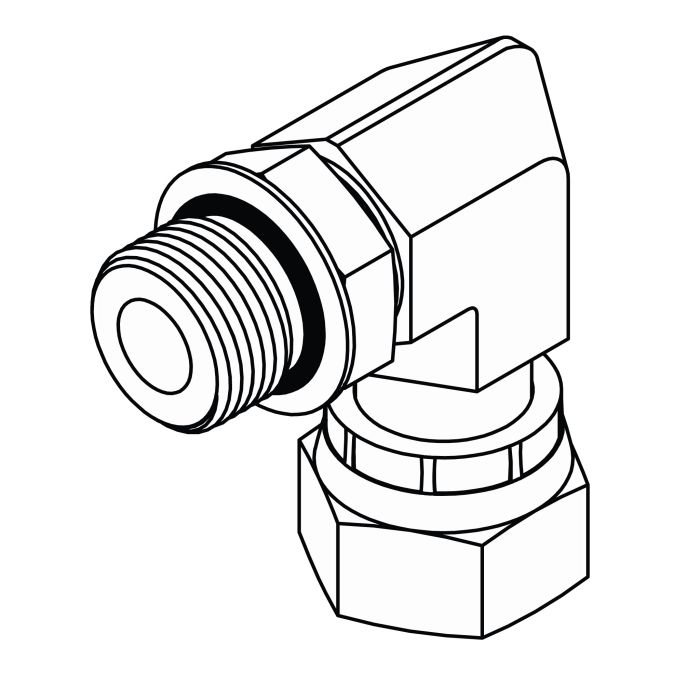

FS6809-20-20 O-Ring Boss Male to ORFS Female Adjustable Swivel Stud 90° Elbow

Product Overview

The FS6809-20-20 O-Ring Boss Male to ORFS Female Adjustable Swivel Stud 90° Elbow is a high-flow hydraulic fitting designed for demanding hydraulic systems requiring compact routing and reliable sealing. It connects a male ORB port to a female ORFS swivel connection, providing both secure sealing performance and installation flexibility.

The 90° elbow configuration helps reduce hose bending stress, improves space utilization, and supports efficient hydraulic line routing in complex assemblies. The swivel design allows easy alignment during installation, reducing torque stress and improving sealing consistency.

Manufactured from high-strength steel and compliant with SAE 520281, this fitting is built for durability, vibration resistance, and long-term performance in heavy-duty industrial, mobile, construction, and agricultural hydraulic applications.

Specifications

• Part Number: FS6809-20-20
• Material: Steel
• Shape: 90° Elbow
• Compliance: SAE 520281

Thread 1

• Type: Male O-Ring Boss (ORB)
• Nominal Size: 20
• Thread Size: 1-5/8-12 UNF

Thread 2

• Type: Female O-Ring Face Seal (ORFS) Swivel
• Nominal Size: 20
• Thread Size: 1-11/16-12 UNF
