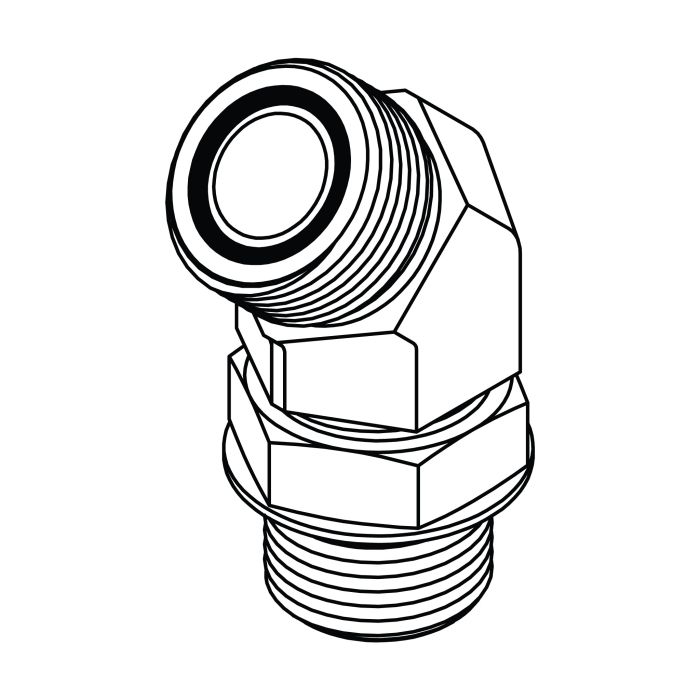

FS6802-06-10 O-Ring Face Seal Male to O-Ring Boss Male 45° Elbow

FS6802-06-10 ORFS Male to ORB Male 45° Elbow | Steel Hydraulic Adapter

The FS6802-06-10 O-Ring Face Seal (ORFS) Male to O-Ring Boss (ORB) Male 45° Elbow is a hydraulic adapter designed to connect an ORFS male fitting to an ORB male port while providing a 45-degree change in flow direction. This fitting improves hose routing, reduces stress on hydraulic lines, and supports compact system layouts.

Manufactured from high-strength steel and compliant with SAE 520320, it delivers reliable sealing performance, durability, and resistance to vibration in demanding hydraulic applications.

Specifications

• Part Number: FS6802-06-10
• Material: Steel
• Shape: 45° Elbow
• Compliance: SAE 520320

Thread 1

• Type: Male O-Ring Face Seal (ORFS)
• Nominal Size: 06
• Thread Size: 11/16-16 UNF

Thread 2

• Type: Male O-Ring Boss (ORB)
• Nominal Size: 10
• Thread Size: 7/8-14 UNF
