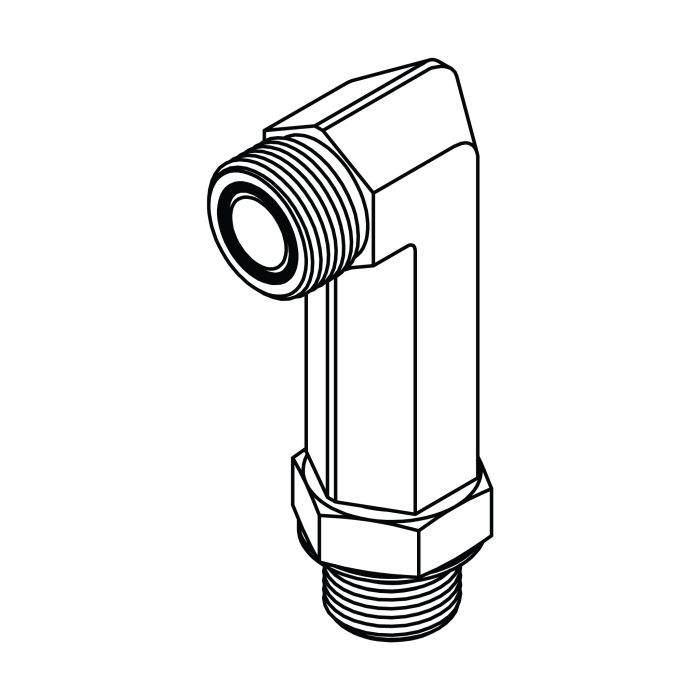

FS6801-L-10-10 ORFS Male to O-Ring Male 90° Adjustable Stud Elbow - Long

FS6801-L-10-10 ORFS Male to ORB Male 90° Adjustable Stud Elbow (Long) | Steel Hydraulic Fitting

The FS6801-L-10-10 ORFS Male to ORB Male 90° Adjustable Stud Elbow (Long) is a hydraulic fitting designed for 90° directional flow changes while connecting an ORFS male port to an ORB male port. The adjustable stud design allows precise positioning during installation, making it ideal for complex or space-constrained hydraulic layouts.

This long-drop configuration provides additional clearance, improving hose routing flexibility and reducing stress on connected components.

Specifications

• Part Number: FS6801-L-10-10
• Material: Steel
• Shape: 90° Adjustable Elbow (Long)

Thread 1

• Type: Male O-Ring Face Seal (ORFS)
• Nominal Size: 10
• Thread Size: 1-14 UNF

Thread 2

• Type: Male O-Ring (ORB)
• Nominal Size: 10
• Thread Size: 7/8-14 UNF

Drop Length

• Measurement: 3.51 (middle of ORFS face to end of ORB threads)
