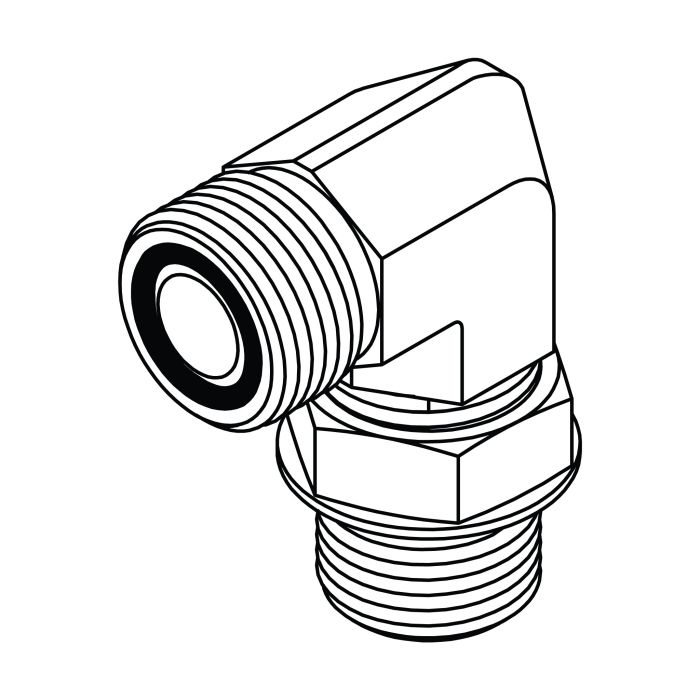

FS6801-12-16 SAE ORFS Male to SAE ORB Male 90° Adjustable Stud Elbow

FS6801-12-16 SAE ORFS Male to SAE ORB Male 90° Adjustable Stud Elbow

The FS6801-12-16 SAE ORFS Male to SAE ORB Male 90° Adjustable Stud Elbow is a hydraulic fitting designed to connect a 1 3/16-12 SAE ORFS (O-Ring Face Seal) port to a 1 5/16-12 SAE ORB (O-Ring Boss) port at a 90-degree angle in hydraulic systems. Manufactured from high-strength steel, this adjustable stud elbow delivers dependable, leak-resistant performance in demanding hydraulic applications.

Specifications

• Material: Steel
• Shape: 90-degree elbow
• Thread 1 Type: Male O-Ring Face Seal (ORFS)
• Thread 1 Nominal Size: 12
• Thread 1 Size: 1 3/16-12
• Compliance: SAE 520220
• Thread 2 Type: Male O-Ring Boss (ORB)
• Thread 2 Nominal Size: 16
• Thread 2 Size: 1 5/16-12
• Sealing Type: ORFS O-ring / ORB O-ring seal
• Pressure Rating: Up to 5000 PSI (application dependent)
