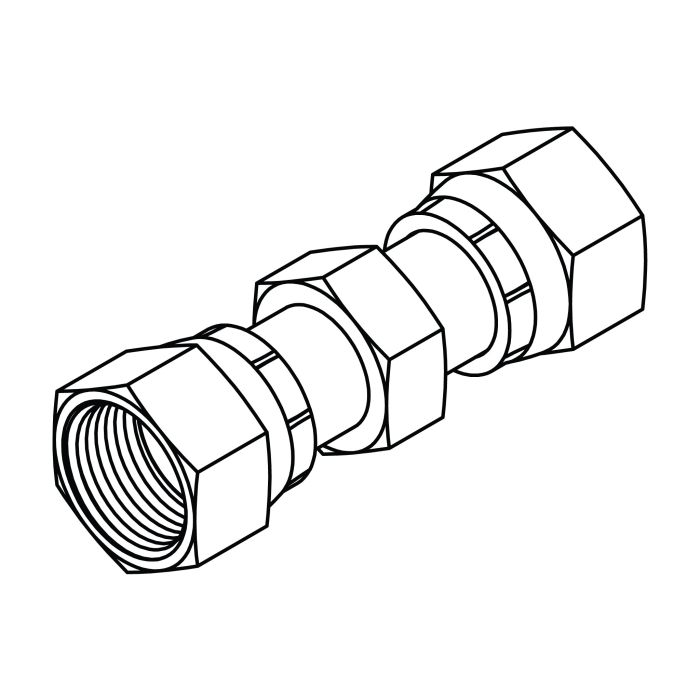

FS6565-16-16 ORFS Female Swivel to ORFS Female Swivel Union
FS6565-16-16 ORFS Female Swivel to ORFS Female Swivel Union | Steel Hydraulic Connector
The FS6565-16-16 ORFS Female Swivel to ORFS Female Swivel Union is a straight hydraulic union designed to connect two ORFS female swivel ports of the same size. It provides a secure inline connection between hydraulic components while maintaining the ORFS flat-face sealing system for reliable, leak-free performance in high-pressure applications.
Manufactured from domestic high-strength steel, this fitting is engineered for durability, vibration resistance, and long service life in demanding hydraulic systems.
Specifications
- Part Number: FS6565-16-16
- Material: Domestic Steel
- Shape: Straight
- Thread 1 Type: Female O-Ring Face Seal (ORFS) Swivel
- Thread 1 Nominal Size: 16
- Thread 1 Size: 1-7/16-12 UNF
- Thread 2 Type: Female O-Ring Face Seal (ORFS) Swivel
- Thread 2 Nominal Size: 16
- Thread 2 Size: 1-7/16-12 UNF
