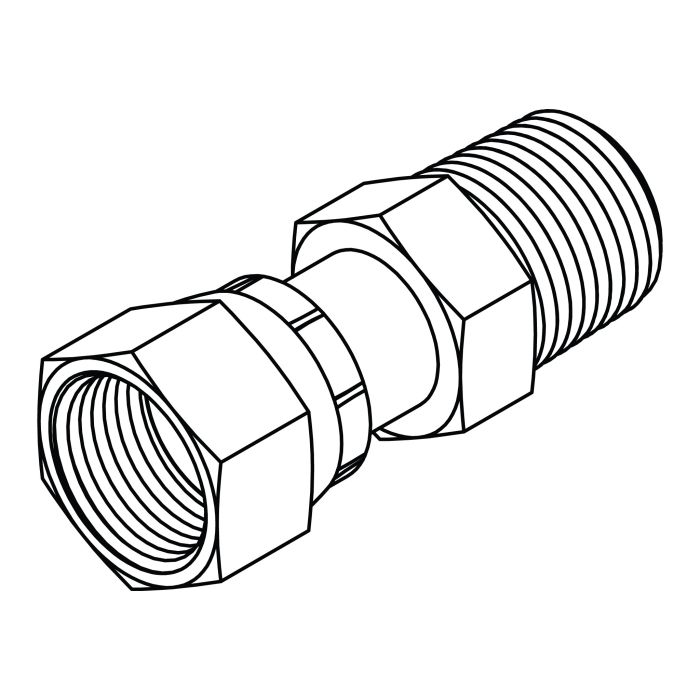

FS6505-04-04 ORFS Female Swivel to Male Pipe NPT Straight

FS6505-04-04 ORFS Female Swivel to Male Pipe NPT Straight | Steel Hydraulic Adapter

The FS6505-04-04 ORFS Female Swivel to Male Pipe NPT Straight is a hydraulic adapter designed to connect an ORFS swivel port to a male NPT pipe connection in a straight configuration. It enables reliable transition between ORFS flat-face sealing systems and traditional pipe-thread hydraulic systems.

Manufactured from high-strength steel and built to industrial hydraulic standards, this fitting ensures secure sealing, strong mechanical integrity, and resistance to vibration and pressure in demanding fluid power applications.

Specifications

• Part Number: FS6505-04-04
• Material: Steel
• Shape: Straight
• Thread 1 Type: Female O-Ring Face Seal (ORFS) Swivel
• Thread 1 Nominal Size: 04
• Thread 1 Size: 9/16-18 UNF
• Thread 2 Type: Male Pipe (NPT)
• Thread 2 Nominal Size: 04
• Thread 2 Size: 1/4-18 NPT
