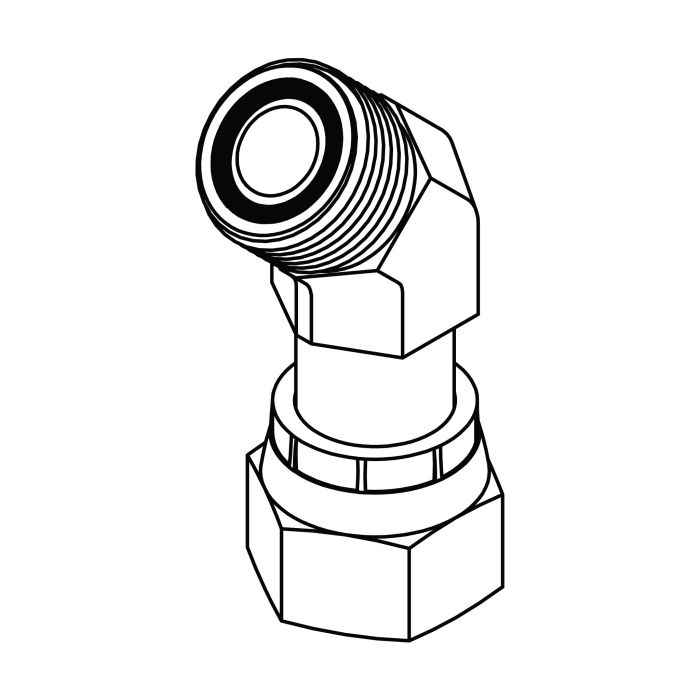

FS6502-06-06 SAE ORFS Male x SAE ORFS Female Swivel 45° Elbow

FS6502-06-06 SAE ORFS Male × SAE ORFS Female Swivel 45° Elbow | Steel Hydraulic Fitting

The FS6502-06-06 SAE ORFS Male × SAE ORFS Female Swivel 45° Elbow is a hydraulic fitting designed to change flow direction by 45° while maintaining a secure ORFS-to-ORFS connection. It features a Male ORFS (06) end and a Female ORFS swivel (06) end, allowing easier alignment during installation and reducing hose stress in compact hydraulic layouts.

Manufactured from high-strength steel and engineered to SAE 520221 standards, this fitting delivers reliable leak-free performance in high-pressure hydraulic systems with excellent resistance to vibration, pressure spikes, and mechanical stress.

Specifications

• Part Number: FS6502-06-06
• Material: Steel
• Shape: 45° Elbow
• Thread 1 Type: Male O-Ring Face Seal (ORFS)
• Thread 1 Nominal Size: 06
• Thread 1 Size: 11/16-16 UNF
• Thread 2 Type: Female O-Ring Face Seal Swivel
• Thread 2 Nominal Size: 06
• Thread 2 Size: 11/16-16 UNF
