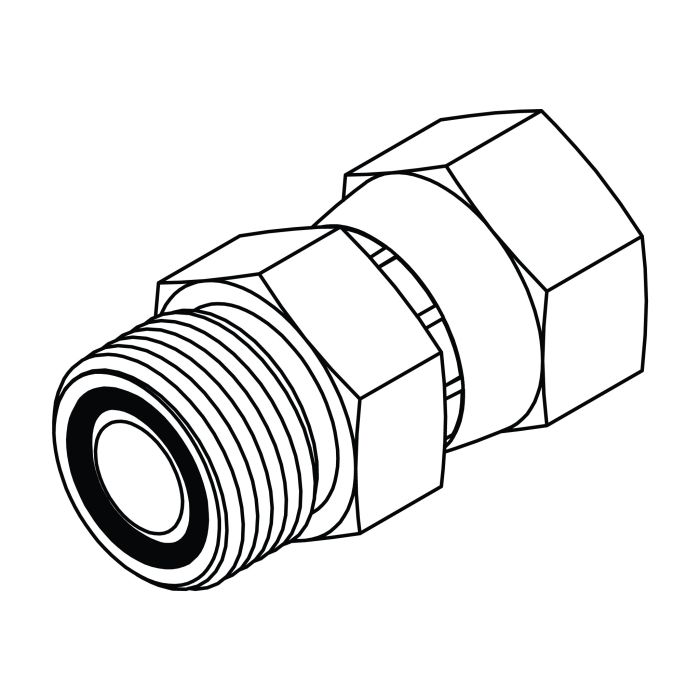

FS6402-10-10 Male ORFS to Female JIC Swivel

FS6402-10-10 Male ORFS to Female JIC Swivel | Steel Hydraulic Adapter

The FS6402-10-10 Male ORFS to Female JIC Swivel is a premium hydraulic adapter designed to connect a Male O-Ring Face Seal (ORFS) fitting to a Female JIC 37° swivel connection. This adapter enables seamless integration between ORFS and JIC hydraulic systems while delivering dependable, leak-free sealing performance in high-pressure applications.

Manufactured from high-strength steel and engineered to SAE 520181 standards, this fitting provides exceptional durability, corrosion resistance, and reliability in demanding industrial, mobile, and fluid power systems.

Specifications

• Part Number: FS6402-10-10
• Material: Steel
• Shape: Straight
• Standard Compliance: SAE 520181

ORFS Side

• Thread 1 Type: Male O-Ring Face Seal (ORFS)
• Thread 1 Nominal Size: 10
• Thread 1 Size: 1-14 UNF

JIC Side

• Thread 2 Type: Female JIC Swivel (37° Flare)
• Thread 2 Nominal Size: 10
• Thread 2 Size: 7/8-14 UNF
