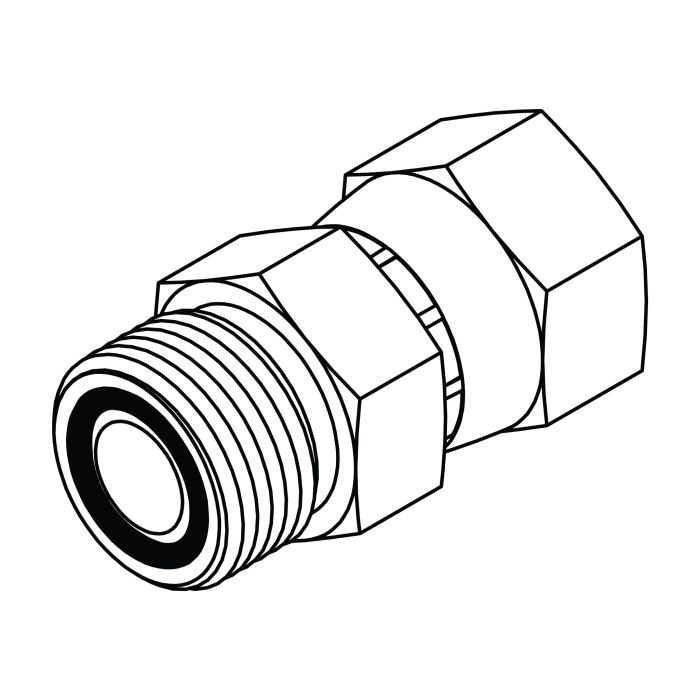

FS6402-04-04 Male ORFS to Female JIC Swivel

FS6402-04-04 Male ORFS to Female JIC Swivel | Steel Hydraulic Adapter

The FS6402-04-04 Male ORFS to Female JIC Swivel is a precision hydraulic adapter designed to connect a Male O-Ring Face Seal (ORFS) fitting to a Female JIC 37° swivel connection. This fitting is commonly used to transition between ORFS and JIC hydraulic systems while maintaining a secure, leak-resistant seal.

Manufactured from high-strength steel and built to SAE 520181 standards, it ensures reliable performance in high-pressure hydraulic applications, with excellent resistance to vibration, pressure spikes, and mechanical stress.

Specifications

• Part Number: FS6402-04-04
• Material: Steel
• Shape: Straight
• Standard Compliance: SAE 520181

ORFS Side

• Thread 1 Type: Male O-Ring Face Seal (ORFS)
• Thread 1 Nominal Size: 04
• Thread 1 Size: 9/16-18 UNF

JIC Side

• Thread 2 Type: Female JIC Swivel (37° Flare)
• Thread 2 Nominal Size: 04
• Thread 2 Size: 7/16-20 UNF
