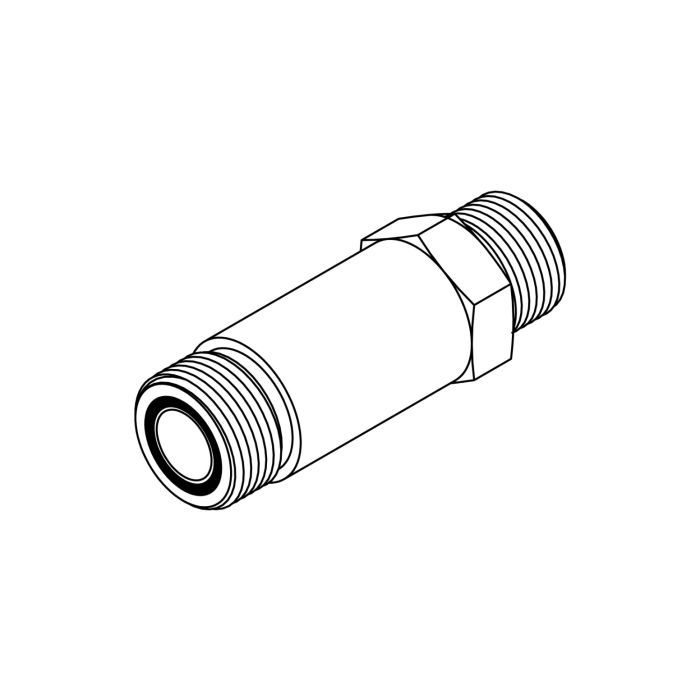

FS6400-L-10-10 ORFS to O-Ring Stud Straight - Long

FS6400-L-10-10 ORFS to O-Ring Stud Straight – Long | Steel Hydraulic Fitting

The FS6400-L-10-10 ORFS to O-Ring Stud Straight – Long is a high-strength hydraulic adapter designed to connect a Male O-Ring Face Seal (ORFS) fitting to a Male O-Ring Boss (ORB) port of the same nominal size. The extended-length body provides additional installation clearance and easier routing in tight or recessed hydraulic assemblies.

Manufactured from durable steel and built to SAE 520122 standards, this fitting ensures reliable leak-free performance, excellent vibration resistance, and long service life in demanding hydraulic systems.

Specifications

• Part Number: FS6400-L-10-10
• Material: Steel
• Shape: Straight – Long Body
• Standard Compliance: SAE 520122
• Overall Adapter Length (OAL): 3.13 in

Thread Details

• Thread 1 Type: Male O-Ring Face Seal (ORFS)
• Thread 1 Nominal Size: 10
• Thread 1 Size: 1-14 UNF
• Thread 2 Type: Male O-Ring Boss (ORB)
• Thread 2 Nominal Size: 10
• Thread 2 Size: 7/8-14 UNF
