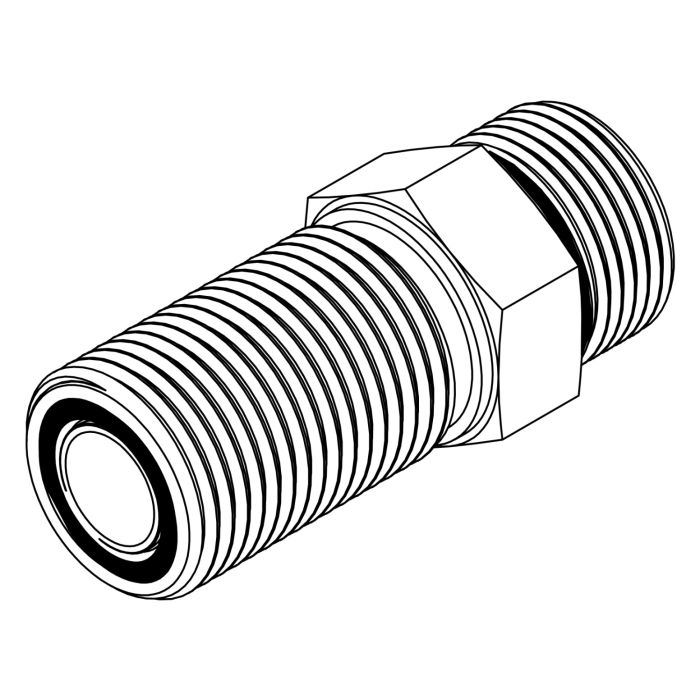

FS2764-06-06 ORFS to O-Ring Bulkhead

FS2764-06-06 ORFS to O-Ring Bulkhead | Steel Hydraulic Fitting

The FS2764-06-06 ORFS to O-Ring Bulkhead is a straight hydraulic adapter designed to provide a secure transition between Male O-Ring Face Seal (ORFS) and Male O-Ring Boss (ORB) connections through bulkhead panels, hydraulic enclosures, and equipment frames. It features an 11/16-16 UNF ORFS male connection (Size 06) on one end and a 9/16-18 UNF ORB male connection (Size 06) on the other, ensuring dependable, leak-free performance in high-pressure hydraulic systems.

Manufactured from high-strength steel and engineered to meet SAE 520120 standards, this bulkhead adapter offers outstanding durability, corrosion resistance, and long service life in demanding industrial, agricultural, construction, and mobile hydraulic applications. The combination of ORFS flat-face sealing and ORB O-ring sealing technology provides superior protection against leaks, even under vibration, pressure surges, and continuous operation.

Specifications

• Part Number: FS2764-06-06
• Material: Steel
• Shape: Straight Bulkhead Adapter
• Thread 1 Type: Male O-Ring Face Seal (ORFS)
• Thread 1 Nominal Size: 06
• Thread 1 Size: 11/16-16 UNF
• Thread 2 Type: Male O-Ring Boss (ORB)
• Thread 2 Nominal Size: 06
• Thread 2 Size: 9/16-18 UNF
• Standard Compliance: SAE 520120
