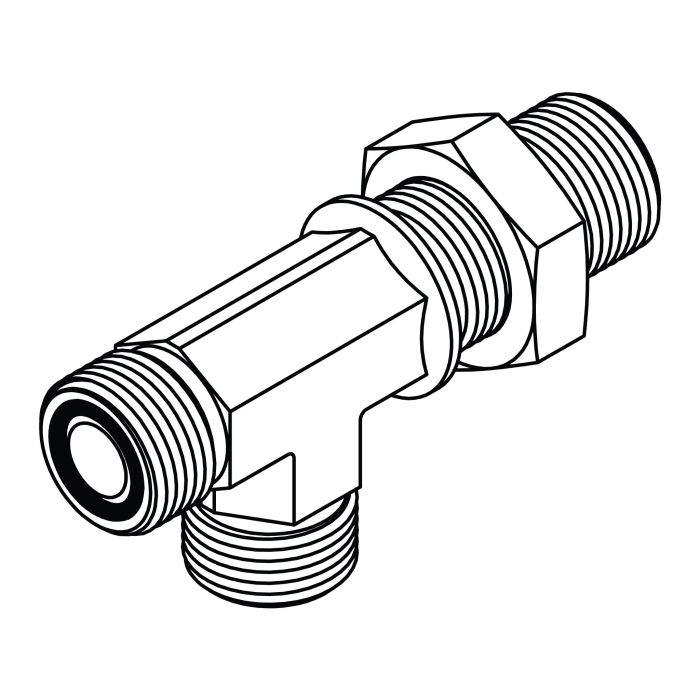

FS2704-LN-08-08-08 ORFS Bulkhead Union Run Tee with Locknut

FS2704-LN-08-08-08 ORFS Bulkhead Union Run Tee with Locknut | Steel Hydraulic Fitting

The FS2704-LN-08-08-08 ORFS Bulkhead Union Run Tee with Locknut is a heavy-duty hydraulic fitting designed for in-line fluid distribution and branch routing through bulkhead panels, hydraulic manifolds, and compact hydraulic systems. It connects three 13/16-16 UNF (Size 08) Male O-Ring Face Seal (ORFS) ports, ensuring a secure, leak-free connection in medium-pressure hydraulic applications.

This version includes an integrated locknut, providing rigid and vibration-resistant mounting on panels, frames, or hydraulic assemblies. Manufactured from high-strength steel and engineered to meet SAE 520958 standards, it delivers excellent durability, corrosion resistance, and long service life in demanding industrial, construction, agricultural, and mobile hydraulic environments. The ORFS flat-face O-ring sealing system ensures superior leak prevention under vibration, pressure fluctuations, and continuous operation.

Specifications

• Part Number: FS2704-LN-08-08-08
• Material: Steel
• Shape: Tee (Run Tee / Bulkhead Style with Locknut)
• Thread 1 Type: Male O-Ring Face Seal (ORFS)
• Thread 1 Nominal Size: 08
• Thread 1 Size: 13/16-16 UNF
• Thread 2 Type: Male O-Ring Face Seal (ORFS)
• Thread 2 Nominal Size: 08
• Thread 2 Size: 13/16-16 UNF
• Thread 3 Type: Male O-Ring Face Seal (ORFS)
• Thread 3 Nominal Size: 08
• Thread 3 Size: 13/16-16 UNF
• Standard Compliance: SAE 520958
